Example State-Next State Table

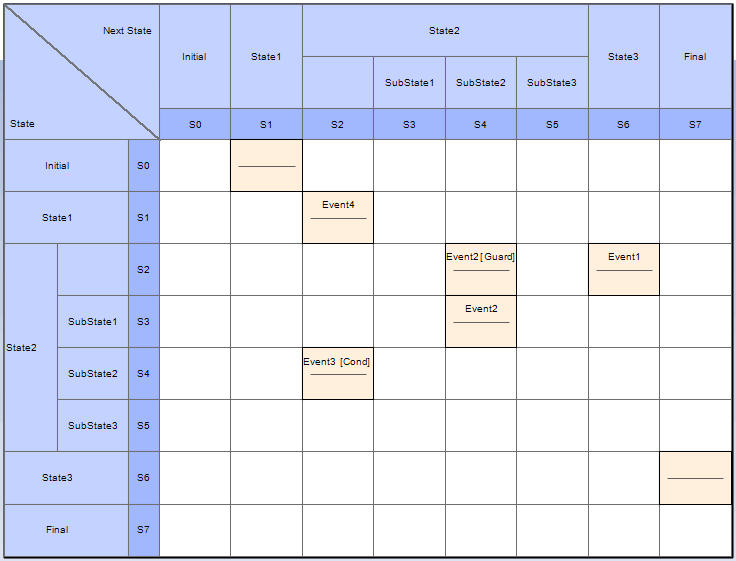

The rows and columns both indicate states, and the cell at the intersection of a row and column indicates:

  • The event that triggers a transition from the current (row) state to the next (column) state
  • The condition (or guard) of the event, and
  • The effect of the transition
