Add a Structured Tagged Value to a Stereotype

If you want to define a property that has a number of components, such as an address, you can use a Structured Tagged Value. This consists of a set of related Tagged Values in a sequence that together define the property. For example, the Structured Tagged Value for the street address has the component Tagged Values:

PropertyNo  - 448
Street - My Street
Town - Creswick
AreaCode - 3363

When you initially display this in the Tagged Value window or tags compartment of an element, the values of the tags are displayed in a string, such as:

448, My Street, Creswick, 3363

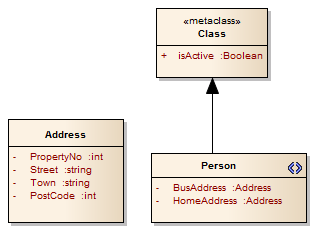

You can then expand the Structured Tagged Value to list the component tag names and values. You create a Structured Tagged Value in a profile, using an unstereotyped Class. Any attribute owned by a Stereotype element in the profile that is typed by such a Class will define the Structured Tagged Value.

Create a Structured Tagged Value Class



See also


In your Profile Package, open the child Class diagram.

Create a Profile Package



In the Toolbox, select More tools | Class.

The contents of the Class page of the Toolbox display.




Drag a Class item from the Toolbox onto the diagram.

If the Properties dialog does not display, double-click on the element on the diagram.




In the Name field, type the name of the new Class element.




Select the Details page from the Properties hierarchy, and click on the Attributes button.

The Attributes dialog displays.




In the Name field, type the name of the Structured Tag attribute (for example, PropertyNo).




In the Type field, click on the drop-down arrow and select the appropriate type (such as int or string).




Click on the Save button, and repeat steps 6 to 8 for each remaining component tag attribute (for example: Street, Town, AreaCode).




When you have defined all the component tags, click on the Close button.




Right-click on the Stereotype element and select the Attributes context menu option.

The Attributes dialog displays for the stereotype.




In the Name field type a name for the attribute (for example: HomeAddress).




In the Type field click on the (  ...  ) button and select the name of the Structured Tagged Value Class element from the Select <Item> dialog, as the attribute's classifier.


Select <Item> Dialog


Click on the Save and Close buttons.

You have now generated the components of the Structured Tagged Value to be maintained in the Tagged Values window for any element derived from this part of the profile.


Tagged Values


Continue defining the profile, then save the diagram or package as a profile and either export it for use or add it to an MDG Technology file.

Export a Profile

Create MDG Technologies

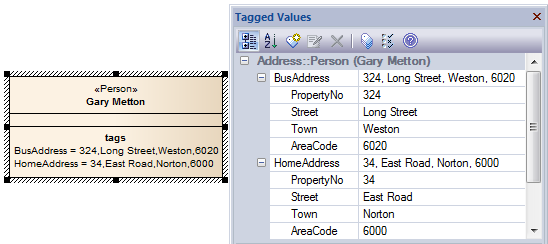

These elements when, as a Profile, are saved, exported, imported and used, provide the Structured Tagged Values for the home and business addresses in an element of the stereotype Person.




The process of applying a Structured Tagged Value through a profile is an alternative to applying the Tagged Value through an Add-In broadcast; see the Learn more topics below
