Recording and Mapping State Changes

This topic discusses how to set constraints against each State in the StateMachine under a Class, to define the change in state to be recorded.

Topics

Topic	Detail	See also
Example	This example of a 'State Properties' dialog is for the State called Parliament; the 'Constraints' tab is open to show how the State is linked to the Class CXTrain. A State can be defined by a single constraint or by many; in the example, the State Parliament has two constraints: The values of constraints can only be compared for elemental, enum and string types The CXTrain Class has a member called Location of type int, and a member called Departing.Name of type CString; what this constraint means is that this State is evaluated to True when: an instance of the CXTrain Class exists and its member variable Location has the value 0 and the member variable Departing.Name has the value Parliament	Reporting a State Machine
Operators in Constraints	There are two types of operators you can use on constraints to define a State: Logical operators AND and OR can be used to combine constraints Equivalence operators {= and !=} can be used to define the conditions of a constraint All the constraints for a State are subject to an AND operation unless otherwise specified; you can use the OR operation on them instead, so you could rewrite the constraints in the example as: Location=0 OR Location=1 AND Departing.Name!=Central Here are some examples of using the equivalence operators: Departing.Name!=Central AND Location!=1

Topic

Detail

See also

Example

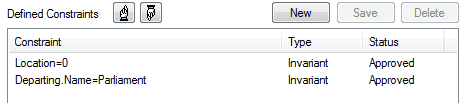

This example of a 'State Properties' dialog is for the State called Parliament; the 'Constraints' tab is open to show how the State is linked to the Class CXTrain.

A State can be defined by a single constraint or by many; in the example, the State Parliament has two constraints:

The values of constraints can only be compared for elemental, enum and string types

The CXTrain Class has a member called Location of type int, and a member called Departing.Name of type CString; what this constraint means is that this State is evaluated to True when:

an instance of the CXTrain Class exists and
its member variable Location has the value 0 and
the member variable Departing.Name has the value Parliament

Reporting a State Machine

Operators in Constraints

There are two types of operators you can use on constraints to define a State:

Logical operators AND and OR can be used to combine constraints
Equivalence operators {= and !=} can be used to define the conditions of a constraint

All the constraints for a State are subject to an AND operation unless otherwise specified; you can use the OR operation on them instead, so you could rewrite the constraints in the example as:

Location=0 OR

Location=1 AND

Departing.Name!=Central

Here are some examples of using the equivalence operators:

Departing.Name!=Central AND

Location!=1

Notes

Quotes around strings are optional; the comparison for strings is always case-sensitive in determining the truth of a constraint

Learn more

Reporting a StateMachine
