MDG Technology for CMMN

The MDG Technology for the Case Management Model & Notation (CMMN) allows you to create CMMN models with Enterprise Architect.

"A Case is a proceeding that involves actions taken regarding a subject in a particular situation to achieve a desired outcome. Traditional examples come from the legal and medical worlds, where a legal Case involves the application of the law to a subject in a certain fact situation, and a medical Case involves the care of a patient in the context of a medical history and current medical problems."

(Quoted from the Object Management Group (OMG) Case Management Model and Notation Specification (Version 1.0, May 2014))

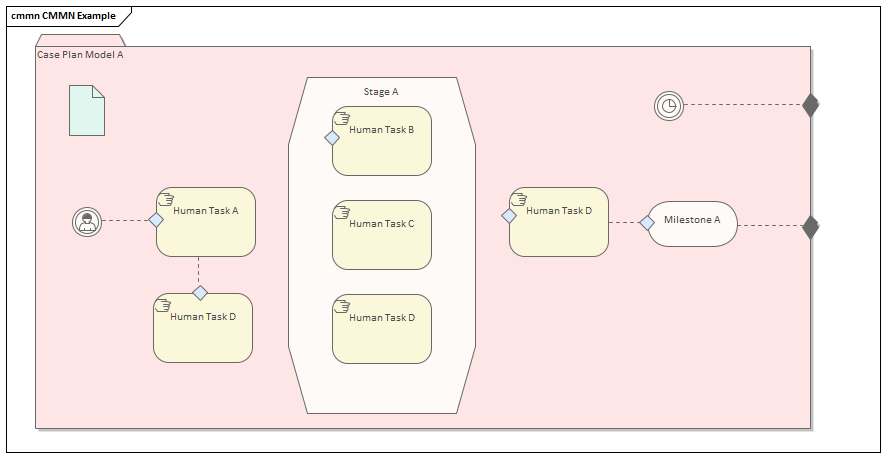

This image shows a CMMN diagram created with Enterprise Architect:

Access

Click on the 'Perspective'  icon (top right corner of the display) and select Perspective > Analysis > CMMN; ; the Model Wizard displays.

Select either the:

  • 'Model Patterns' tab and one of the Patterns to add a template CMMN model to the selected Package, or
  • The 'Diagram' tab and select 'CMMN > CMMN' to add an empty CMMN diagram to the selected Package; the CMMN page displays in the Diagram Toolbox

Ribbon

Design > Diagram > Toolbox

Keyboard Shortcuts

Alt+5

CMMN Modeling

Facility

Description

See also

CMMN in Enterprise Architect

Developing CMMN diagrams is quick and simple, using the MDG Technology for CMMN. The CMMN facilities are provided in the form of:

  • A CMMN diagram type, created through the 'New Diagram' dialog
  • A 'CMMN' page in the Diagram Toolbox, providing CMMN elements (stereotyped UML elements)
  • CMMN element and relationship entries in the 'Toolbox Shortcut Menu' and Quick Linker
The Quick Linker Toolbox Shortcut Menu Add New Diagrams

Disable CMMN

If you prefer not to use the MDG Technology for CMMN, you can disable it (and subsequently re-enable it) using the 'MDG Technologies' dialog.

Manage MDG Technologies
