oslc.where Parameter

The 'oslc.where' Query parameter specifies the conditions that the resources must satisfy; it is similar to the WHERE clause of an SQL statement. This parameter must be appended to the base URI of the Query Capability in Enterprise Architect as:

     <protocol>://<server>/<model_name>/oslc/am/qc/?oslc.where=<conditions>

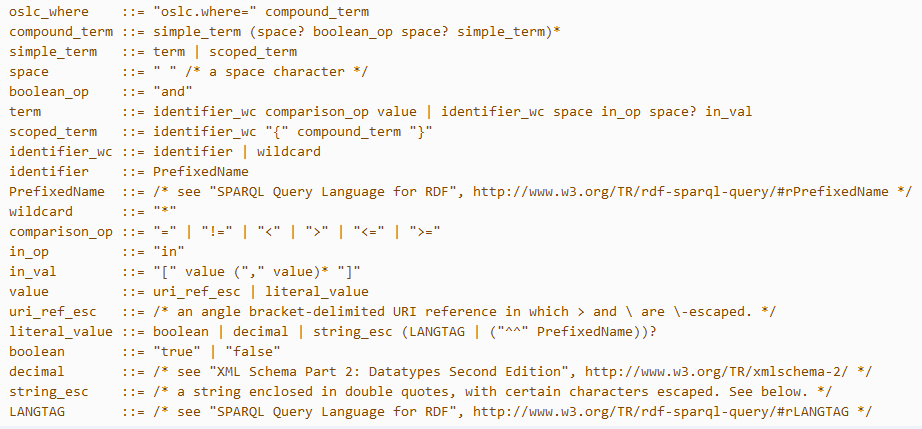

The syntax for the 'oslc.where' Query parameter (defined in BNF grammar and as specified in the OSLC Query Syntax Specification) is:

Syntax for the oslc.where Query parameter

The Resource properties that can be queried are:

  • dcterms:title
  • dcterms:type
  • dcterms:identifier
  • dcterms:subject
  • dcterms:creator{foaf:name} / dcterms:creator{*}
  • dcterms:created
  • dcterms:modified
  • dcterms:description
  • ss:status
  • ss:complexity
  • ss:stereotype{ss:name} / ss:stereotype{ss:fqname}
  • ss:phase
  • ss:version
  • ss:language
  • ss:parentresourceidentifier
  • ss:resourcetype
  • ss:linkedresources

Examples

No.

Query

1

http://localhost:480/firebird_model/oslc/am/qc/?oslc.where=dcterms:title="Class1"

Retrieves all Resources with the name of 'Class1'.

2

http://localhost:480/firebird_model/oslc/am/qc/?oslc.where=dcterms:title="Class1" and dcterms:type="Class"

Retrieves all Enterprise Architect 'Class' type Resources with the name of 'Class1'.

3

http://localhost:480/firebird_model/oslc/am/qc/?oslc.where=dcterms:type="Activity" and dcterms:created > "2018-05-01"

     or

http://localhost:480/firebird_model/oslc/am/qc/?oslc.where=ss:resourcetype ="Element" and dcterms:type="Activity" and dcterms:created > "2018-05-01"

Retrieves all Enterprise Architect Activity type Resources that were created after 2018-05-01.

4

http://localhost:480/firebird_model/oslc/am/qc/?oslc.where=dcterms:creator{foaf:name}="Sparx"

Alternatives:

http://localhost:480/firebird_model/oslc/am/qc/?oslc.where=dcterms:creator{foaf:name="Sparx"}

http://localhost:480/firebird_model/oslc/am/qc/?oslc.where=dcterms:creator{*}="Sparx"

http://localhost:480/firebird_model/oslc/am/qc/?oslc.where=dcterms:creator{*="Sparx"}

Retrieves all Resources created by Author 'Sparx'.

5

http://localhost:480/firebird_model/oslc/am/qc/?oslc.where=dcterms:creator{foaf:name} in ["Sparx",”SpxSys”]

Alternatives:

http://localhost:480/firebird_model/oslc/am/qc/?oslc.where=dcterms:creator{foaf:name in ["Sparx",”SpxSys”]}

http://localhost:480/firebird_model/oslc/am/qc/?oslc.where=dcterms:creator{*} in ["Sparx",”SpxSys”]

http://localhost:480/firebird_model/oslc/am/qc/?oslc.where=dcterms:creator{* in ["Sparx",”SpxSys”]}

Retrieves all Resources created by Author 'Sparx' or 'SpxSys'.

6

http://localhost:480/firebird_model/oslc/am/qc/?oslc.where=ss:stereotype{ss:fqname} = "BPMN2.0::Activity"

Alternative:

http://localhost:480/firebird_model/oslc/am/qc/?oslc.where=ss:stereotype{ss:fqname = "BPMN2.0::Activity"}

Retrieves all Enterprise Architect BPMN 2.0 Activity Resources.

7

http://localhost:480/firebird_model/oslc/am/qc/?oslc.where=ss:parentresourceidentifier="pk_{2DFF8796-9D6F-4381-B2DC-4C7FFEB881E2}" and ss:resourcetype="Element"

Retrieves all Enterprise Architect elements that are directly under a Package with the GUID {2DFF8796-9D6F-4381-B2DC-4C7FFEB881E2}.

8

http://localhost:480/firebird_model/oslc/am/qc/?oslc.where=ss:resourcetype in ["Package","Diagram"]

Retrieves all Enterprise Architect Packages and diagrams in the model.

9

http://localhost:480/firebird_model/oslc/am/qc/?oslc.where=ss:resourcetype = "Diagram and dcterms:type="Custom"

Retrieves all diagrams of Enterprise Architect 'Custom' type in the model.

Note: To retrieve the Diagram Image and Image Map associated with a diagram, follow the URL specified in the <ss:features> element of the diagram XML.

10

http://localhost:480/firebird_model/oslc/am/qc/?oslc.where=dcterms:identifier="dg_{5147E138-1F14-4738-B721-5FCC0F882FB8}"

Retrieves all properties of a diagram with the Enterprise Architect GUID {5147E138-1F14-4738-B721-5FCC0F882FB8}.

Note: To retrieve the Diagram Image and Image Map associated with a diagram, follow the URL specified in the <ss:features> element of the diagram XML.

11

http://localhost:480/firebird_model/oslc/am/qc/?oslc.where=ss:linkedresources{*=<http://localhost:480/firebird_model/oslc/am/resource/el_{B55E995C-D8EA-4fa9-9006-7932294961A9}>}

Retrieves all Resources that link to 'Class1' (which has the Enterprise Architect GUID {B55E995C-D8EA-4fa9-9006-7932294961A9}).

In other words, this will retrieve all those Packages and elements that have Connectors whose target end is Class1.

12

http://localhost:480/firebird_model/oslc/am/qc/?oslc.where=ss:linkedresources{ss:Association=<http://localhost:480/firebird_model/oslc/am/resource/el_{B55E995C-D8EA-4fa9-9006-7932294961A9}>}

Retrieves all Resources that have an Association link to 'Class1' (which has the Enterprise Architect GUID {B55E995C-D8EA-4fa9-9006-7932294961A9}).

In other words, this will retrieve all those Packages and elements that have Association Connectors whose target end is Class1.

13

http://localhost:480/firebird_model/oslc/am/qc/?oslc.where=name="Class1" and dcterms:type="Class"

Returns an error response as 'name' is not a valid Resource Property.

Notes

  • This facility is available through these Enterprise Architect Pro Cloud Server Editions, under Enterprise Architect Release 13.5 or higher: Small Business Edition, Team Server Edition and Enterprise Server Edition
  • Compound terms such as 'dcterms:creator' and 'ss:linkedresources' support only the comparison operators '=' and 'in'
  • Dates must be specified in the format YYYY-MM-DD
  • In a Security Enabled model, you need to provide the User Authentication Token (via the 'useridentifier' query string in the URL) in the GET request to retrieve the Resource/Resource Feature XML
