Setting ArcGIS Coordinate Systems

ArcGIS Feature Classes and Feature Datasets use spatial references, which consist of a coordinate system and associated values such as XY resolution and various tolerance values.

You can capture spatial reference properties using a Class stereotyped as «SpatialReference», which is available from the ArcGIS Toolbox pages. The ArcGIS model Pattern includes a Package named Spatial References, as a placeholder for creating such elements.

To help you model spatial reference properties, Enterprise Architect provides a dialog for selecting one of the predefined coordinate systems supported by ArcGIS. When you select a Geographic or Projected coordinate system, Enterprise Architect automatically inserts default values for the associated properties, such as Well Known Text (WKT), resolution, precision or tolerances. These values are held as Tagged Values on the «SpatialReference» element.

You can also add vertical coordinates to a selected Geographic or Projected coordinate system; the vertical coordinate is loaded to the VCSWKT and VCSWKID Tagged Values on the «SpatialReference» element.

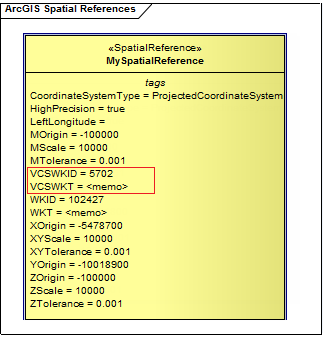

This is an example «SpatialReference» element:

ArcGIS Spatial Reference modeled in Sparx Systems Enterprise Architect.

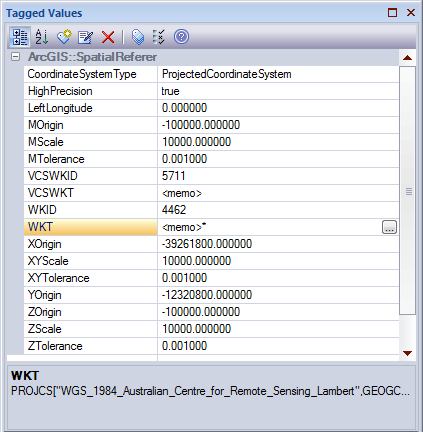

Looking at the WKT Tagged Value in the Tags' tab of the Properties window for this element, you can see that the 'WGS 1984 Australian Centre for Remote Sensing Lambert Projected Coordinate' system has been selected.

ArcGIS Spacial Reference tagged values

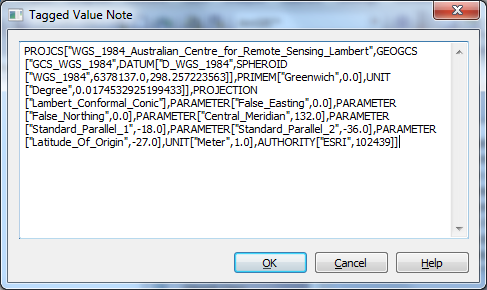

You can expand the information held in this Tagged Value by viewing its Tagged Value Note.

ArcGIS tagged values

Define a Spatial Reference element



See also


Open the diagram under the Spatial References Package of your ArcGIS model.

(You can actually use any ArcGIS diagram in your model to define Spatial Reference elements; however, this diagram is a convenient placeholder created by Enterprise Architect's model Pattern for ArcGIS.)


Drag a Spatial Reference element from the 'Workspace' page of the ArcGIS Core Toolbox onto the diagram.


Right-click on the Spatial Reference element, and select the 'Specialize | ArcGIS | Set Coordinate System' menu option.

The 'Set Coordinate System' dialog displays.


Expand the Geographic or Projected Coordinate Systems hierarchy as appropriate and click on the required coordinate system in the list.


If you want to also apply a vertical coordinate system, click on the Browse. button at the right of the 'Vertical Coordinate' field.

The 'Set Vertical Coordinate System' dialog displays, containing a hierarchy that you again expand and from which you select a listed vertical coordinate system.

Click on the OK button to return to the 'Set Coordinate System' dialog; the 'Vertical Coordinate' field now displays the system you selected.


Click on the OK button to close the dialog and return to the diagram.

The Tagged Values for the Spatial Reference element are updated with the Coordinate System information you have selected.


  • You can refer to a «SpatialReference» Class from any other Feature Dataset or Feature Class in your model, using the SpatialReference Tagged Value; the «SpatialReference» Class thus provides a single point of control, should you need to change the Spatial Reference information later
  • If a Feature Class element references a «SpatialReference» Class that contains a vertical coordinate, set the HasZ Tagged Value on that Feature Class element to true if you want this Feature Class element to store three-dimensional data
  • If you do not refer to a «SpatialReference» Class from any Feature Dataset or Feature Class in your ArcGIS model, the system will generate an XML schema with the Unknown Spatial Reference type for these elements
