Example Diagram

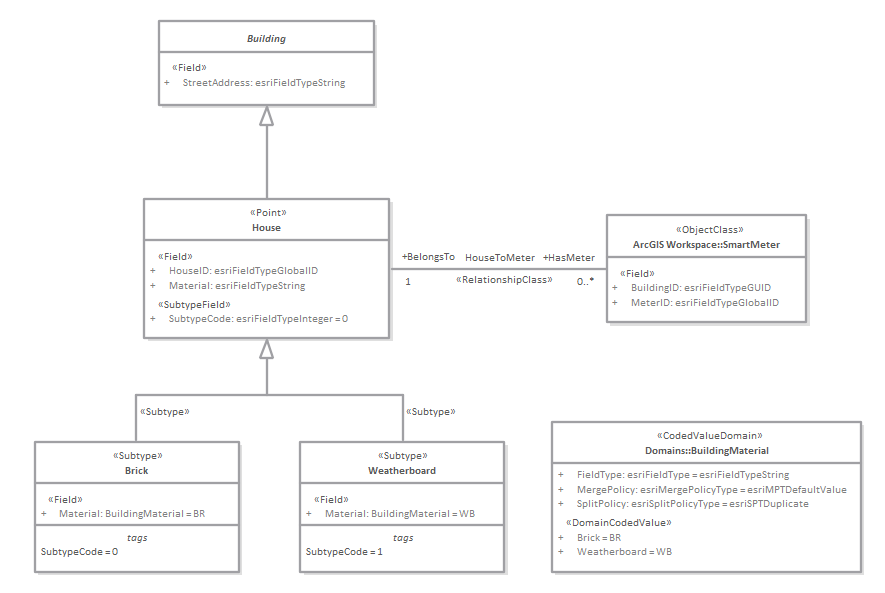

ArcGIS diagrams allow you to visualize the geographic features, domains and other elements that make up a geodatabase schema. In this example a Building has been sub-typed as a house, the house in turn is sub-typed based on the material type. The subtypes of the House references a Coded Value Domain also presented in the diagram with two Domain Code Values:

  • Brick
  • WeatherBoard

A Smart Meter is associated with the house. The House is a type of Building and the Building contains the property of Street Address
