System Output - Audit History

When Auditing is turned on, an 'Audit History' tab is added to the System Output window. The tab shows a history of changes to whichever element or connector you have selected in the:

  • Current diagram
  • Browser window
  • Audit View, or
  • Package Browser

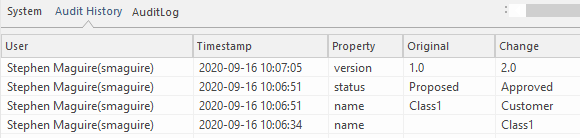

System Output window 'Audit History' tab showing changes to the elements in the repository.

As you select different elements or connectors, the 'Audit History' tab automatically updates to reflect your current selection. For each change made to the element or connector, the tab shows:

  • Who made the change
  • When the change was made
  • Where the change was made
  • The value of the characteristic before the change
  • The value of the characteristic after the change



Start > All Windows > Design > Explore > System > Audit History


  • To see this tab, you must first have the Audit View open; the tab continues to display if you subsequently close the Audit View
  • If security is enabled, you must have 'Audit View' permission to display data on the 'Audit History' tab
