Connector Tagged Values

You can define Tagged Values for a connector and, for Association and Aggregation connectors, set additional Tagged Values for the source role and/or target role.

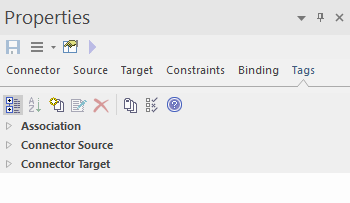

You can set these Tagged Values separately on the 'Tags' tab of the Properties window or 'Properties' dialog.



Start > All Windows > Properties > General > Tagged Values > click on the connector on the diagram     (Properties window)

Context Menu

Right-click on Connector | Properties > General > Tags    ('Properties' dialog)


Double-click on Connector > General > Tags     ('Properties' dialog)

Set Tagged Values for the connector



See also


Click on the connector type name, Connector Source or Connector Target as required.


Either click on the New tag button. icon in the toolbar, or press Ctrl+N.

The 'Tagged Value' dialog displays.


In the 'Tag' field type the tag name, or click on the drop-down arrow and select a predefined Tagged Value type.


In the 'Value' field, type the value for the tag.


Click on the OK button to save the changes and close the dialog.

The Tagged Value is displayed under the object type you selected in step 1.
