Box Layout

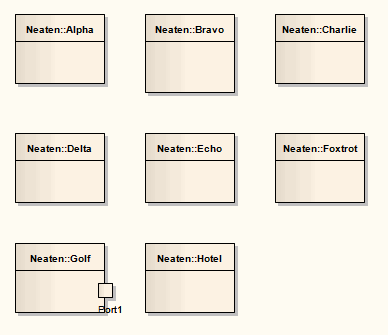

The Box layout arranges the set of selected elements into a square grid.

box

The dimensions of the box are determined by the square root of the number of selected elements (for example, 16 elements create a 4x4 box).

How to

To invoke the Box layout

Step

Action

See also

1

Follow the general Layout Diagrams procedure, and at step 3 select Box.



Layout Diagrams

2

Click on the drop-down arrow in the Sort By: field and select the required sort parameter:

•None - Elements are passed to the specified layout in the order in which they appear on the original diagram (left to right, top to bottom)
•Area (Ascending) - Elements are passed to the specified layout in order of the screen space they occupy, smallest to largest
•Area (Descending) - Elements are passed to the specified layout in order of the screen space they occupy, largest to smallest
•Name (Ascending) - Elements are passed to the specified layout in alphanumeric order, based on the element name
•Name (Descending) - Elements are passed to the specified layout in reverse alphanumeric order, based on the element name
•Element Type - Elements are grouped by type (for example, Class, Use Case) and in alphanumeric order within the group by name





3

In the Padding (px) field, type the vertical and horizontal distance between elements, in pixels.





4

Select the appropriate element distribution option:

•Automatically distribute: Automatically calculate the dimensions of the box (the square root of the number of selected elements; for example,16 elements create a 4x4 box)
•Specify distribution: Manually define the width of the box, in columns





5

If you selected Specify Distribution, in the Columns field type the required number of columns.
