Implementation Report

An Implementation report lists, for a specified package, the elements that require implementers, together with any source elements in Realize (Implements) relationships with those elements.

To view an Implementation report, follow the steps below:

  1. In the Project Browser, right-click on the package to report on; the report includes all sub-packages of this package. The context menu displays.
  2. Select the Documentation | Implementation Report menu option.
  3. The Implementation Details dialog displays with the results for the package. Save or print the results if required.

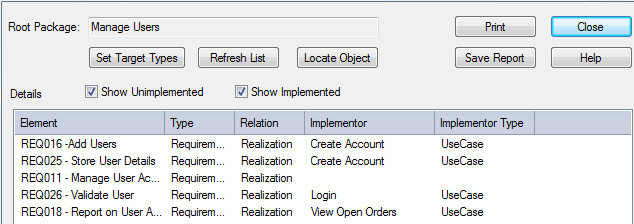

    ImplementationReport



Option

Use to

Root Package

Confirm the root package. All elements and packages under this package appear in the report.

Show Unimplemented

Show non-implemented elements. Non-implemented elements are those that don't have any other element to realize them (for example, a Use Case has no Component or Class to implement the Use Case behavior).

Show Implemented

Show implemented elements. These are elements that do have some element associated with them in a Realization relationship. For example a Use Case has a Component that implements it.

Locate Object

Locate the selected element in the Project Browser.

Refresh List

Run the report again.

Details

List elements in the current hierarchy and elements that implement them.

Print

Print the list.

Set Target Types

Set the list of types to report on. By default Enterprise Architect only reports on a limited number of element types, such as Use Cases and Requirements. For further information see the Set Target Types Dialog topic.
