Logical Data Model

Logical data models help to define the detailed structure of the data elements in a system and the relationships between data elements. They refine the data elements introduced by a Conceptual data model and form the basis of the Physical data model. In Enterprise Architect, a Logical data model is typically represented using the UML Class notation.

Topics:

Topic	Detail	See also

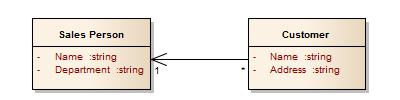

Example	A simple example of a Logical data model is provided below Note that the data elements "Sales Person" and "Customer" contain UML Attributes; the Attribute types, however, remain platform-independent A Logical data model defined using UML Class notation Platform-specific Attribute types and other meta-data that relate to a specific DBMS implementation are defined by the Physical data model

Learn more:

• Physical data models
• UML Class modeling
