Generated Activity Diagram

An Activity is generated as a child of the selected element, to act as a container for the diagram.

  • The scenario steps are modeled as Activities
  • The values of the Uses, Results and State columns for each step are added as Tagged Values of the corresponding Activity

Example:

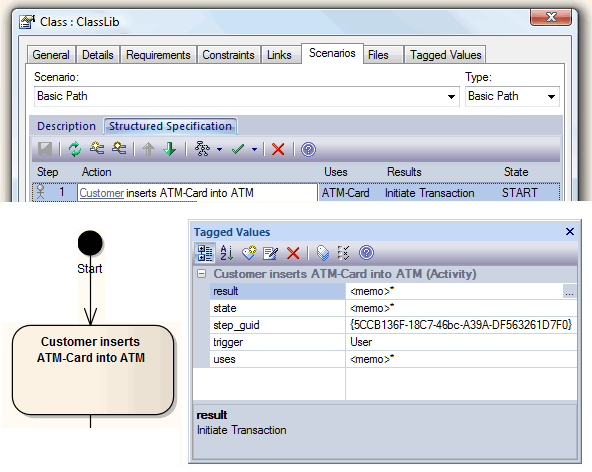

ScenarioActivityD

Topics:

Topic

Detail

See also

Activity with ActivityParameter
  • The values of the Uses and Results columns are modeled as ActivityParameters
  • The value of the State column is added as a Tagged Value of the Activities
  • ActivityParameters are added to the Project Browser and not to the diagram



Activity with Action
  • The scenario steps are modeled as Actions
  • The values of the Uses, Results and State columns are added as Tagged Values of the Actions



Activity with ActionPin
  • The scenario steps are modeled as Actions
  • The values of the Uses and Results columns are modeled as Input Pins and Output Pins respectively
  • The value of the State column is added as a Tagged Value of the Actions
  • ActionPins are added to the Project Browser and not to the diagram
