Create & Delete Workbench Instances
Topic under construction
This topic explains how to create and delete a workbench instance for any Class in your model.
Access: Project Browser Class context menu | Execution Analyzer | Create Workbench Instance of Class ( Ctrl+Shift+J )
Diagram Class context menu | Execution Analyzer | Create Workbench Instance of Class
Topics:
Topic |
Detail |
See also |
|---|---|---|
Naming the Workbench |

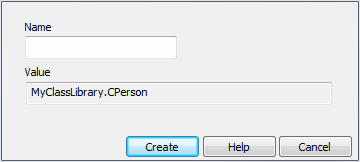

Select the Create Workbench Instance of Class option The Workbench dialog displays
Type in a name for the new instance (for example, Catherine); each instance name must be unique for the workbench |
|
Choosing a Constructor |

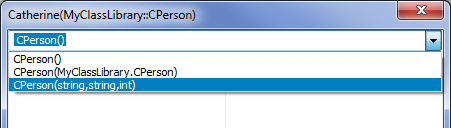

Click on the Create button The following dialog displays:
Select the constructor from the drop-down list and fill in any parameters required Click on the Invoke button; a command window displays The instance then displays in the Workbench window, showing the variables of the instance in a hierarchy of the type and value of the instance and of any members If you do not define a constructor, or define a single constructor taking no arguments, the default constructor or the defined constructor is automatically invoked |
|
Delete Workbench Instances |
You can delete instances using the Delete shortcut menu on any instance on the Workbench If all instances are deleted, the debugger is shut down and the Workbench window is closed |
|
