Create BPEL 1.1 Web Service
BPEL is an Orchestration language, which orchestrates services that are exposed using WSDL 1.1. It coordinates the execution of the various operations of these involved services. BPEL 1.1 supports WSDL 1.1 one-way and request-response operations only (and not solicit-response and notification operations). Enterprise Architect enables you to create, for BPEL Process and Pool elements, Web Service Operations that support either synchronous (request-response) or asynchronous (one-way) interactions.
Access Right-click on a BPEL Process or Pool | BPEL | Create WebService
Reference
|
|
|
|
Operation
|
Specify whether to create a new Web Service or create one from an existing WSDL created / imported into Enterprise Architect ( using the Import WSDL dialog) by selecting either :
| • | Create from existing WSDL |
|
Model WSDL
Import WSDL
|
Type
|
Specify whether to create a one-way or request-response Operation by selecting either :
|
|
Partnership Details
|
The interaction between the Web Service and the BPEL Process is modeled as a BPEL partnerLink. For this interaction, provide a:
|
|
|
Name
|
Name of the BPEL partnerLink.
|
Role
|
Name of either:
| • | myRole ( if this operation belongs to the BPEL Process Web Service ) or |
| • | partnerRole ( if this operation belongs to the Web Service of a Pool ) of the BPEL partnerLink. |
|
|
|
Web Service
|
|
|
|
When Create New is selected in the Operation field:
|
Web Service Name
|
Name of the WSDL 1.1 Web Service.
|
PortType
|
Name of the WSDL 1.1 PortType (Interface).
|
Operation
|
Name of the WSDL 1.1 PortType Operation.
|
|
When Create from existing WSDL PortType Operation is selected in the Operation field:
|
WSDL Package
|
Select an existing WSDL package created / imported into Enterprise Architect.
|
Web Service Name
|
Name of the WSDL 1.1 Web Service.
Default: name of the selected WSDL Package.
|
PortType
|
Select a WSDL 1.1 PortType from the selected WSDL Package.
|
Operation
|
Select a WSDL 1.1 PortType Operation in the selected PortType.
|
|
|
Input
|
|
|
|
When Create New is selected in the Operation field:
|
Message Name
|
Name of the WSDL 1.1 Message.
|
Properties
|
Press ( ... ) to enter the WSDL 1.1 Message Part Name and XSD Type.
|
|
When Create from existing WSDL PortType Operation is selected in the Operation field:
The fields in this tab are pre-filled with the details of the input WSDL 1.1 Message (of the WSDL 1.1 PortType Operation selected in the Operation field in the Web Service tab).
|
|
|
Output
|
|
|
|
When Create New is selected in the Operation field:
|
Message Name
|
The name of the WSDL 1.1 Message.
|
Properties
|
Press the ( ... ) button to enter the WSDL 1.1 Message Part Name and XSD Type.
|
|
When Create from existing WSDL PortType Operation is selected in the Operation field:
The fields in this tab are pre-filled with the details of the output WSDL 1.1 Message (of the WSDL 1.1 PortType Operation selected in the Operation field in the Web Service tab).
|
|
|
OK
|
Create a Web Service Operation based on the values entered in the dialog.

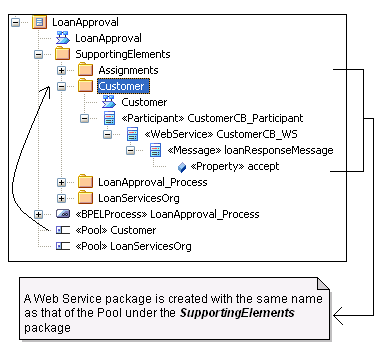

The Operation is created in a package, whose name is the same as that of the BPEL Process / Pool from which this dialog is invoked, under the SupportingElements package.
|
SupportingElements
|
Cancel
|
Discard the values entered in the dialog and abort creating the Web Service Operation.
|
|
Help
|
Display this Help topic.
|
|
Notes
| • | The Output tab is not applicable for an Asynchronous operation |
