Create BPEL 2.0 Web Service Operation

BPEL is an Orchestration language, which orchestrates services that are exposed using WSDL 1.1. It coordinates the execution of the various operations of these involved services. BPEL 2.0 supports WSDL 1.1 one-way and request-response operations only (and not solicit-response and notification operations). Enterprise Architect enables you to create, for BPEL Process and Pool elements, Web Service Operations that support either synchronous (request-response) or asynchronous (one-way) interactions.

Access   Right-click on a BPEL Process or Pool | BPEL | Create WebService

Reference

Field/Button

Usage

See also

Operation

Specify whether to create a new Web Service Operation or create one from an existing WSDL created / imported into Enterprise Architect ( using the Import WSDL dialog ) by selecting either:

•Create New  or
•Create from existing WSDL PortType Operation



Model WSDL

Import WSDL

Type

Specify whether to create a one-way or request-response Operation by selecting either :

•Asynchronous or
•Synchronous





Partnership Details

The interaction between the Web Service and the BPEL Process is modeled as a BPEL partnerLink. For this interaction, provide:



Field

Usage

Name

Name of the BPEL partnerLink.



Role

Name of either:

•myRole (if this operation belongs to the BPEL Process Web Service) or
•partnerRole (if this operation belongs to the Web Service of a Pool)


of the BPEL partnerLink.






Web Service

Field

Usage

When Create New is selected in the Operation field:

PortType

Name of the WSDL 1.1 PortType ( Interface ).



Operation

Name of the WSDL 1.1 PortType Operation.





When Create from existing WSDL PortType Operation is selected in the Operation field:

WSDL Package

Select an existing WSDL package created / imported into Enterprise Architect.



PortType

Select a WSDL 1.1 PortType from the selected WSDL Package.



Operation

Select a WSDL 1.1 PortType Operation in the selected PortType.







Input

Field

Usage

When Create New is selected in the Operation field:

Message Name

Name of the WSDL 1.1 Message.



Properties

Click on the ( ... ) button to enter the WSDL 1.1 Message Part Name and XSD Type.





When Create from existing WSDL PortType Operation is selected in the Operation field:

•The fields in this tab are pre-filled with the details of the input WSDL 1.1 Message (of the WSDL 1.1 PortType Operation selected in the Operation field in the Web Service tab)






Output

Field

Usage

When Create New is selected in the Operation field:

Message Name

Name of the WSDL 1.1 Message.



Properties

Click on the ( ... ) button to enter the WSDL 1.1 Message Part Name and XSD Type.





When Create from existing WSDL PortType Operation is selected in the Operation field:

•The fields in this tab are pre-filled with the details of the output WSDL 1.1 Message (of the WSDL 1.1 PortType Operation selected in the Operation field in the Web Service tab)






OK

Create a Web Service Operation based on the values entered in the dialog.

The operation is created in a package that has the same name as the BPEL Process / Pool from which this dialog is invoked, under the SupportingElements package.

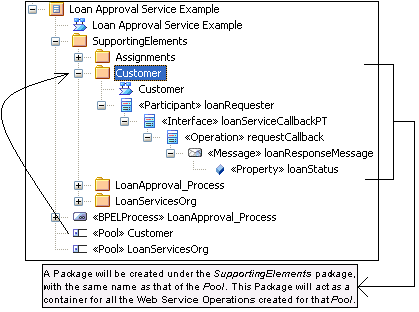

Pool Package



SupportingElements

Cancel

Discard the values entered in the dialog and abort creating the Web Service Operation.





Help

Display this Help topic.





Notes

•The Output tab is not applicable for an Asynchronous operation
