Fan Relations Layout

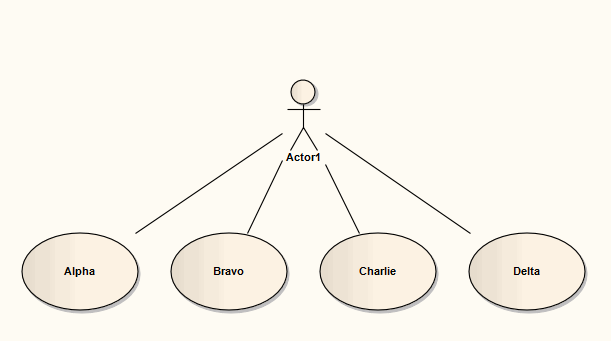

The Fan Relations layout arranges the immediate relations of an element around a specified edge. This layout requires a single element to be selected on the diagram, to be used as the context for the layout.fan

How to

To invoke the Fan Relations layout

Step

Action

See also

1

Open the Layout Tools window; either:

•Select the View | Diagram Layout menu option, or
•Right-click on the main toolbar and select the Layout Tools context menu option



Layout Diagrams

2

Select the single element around which to lay out related elements on the currently-active diagram.





3

Click on the drop-down arrow on the top left button of the Layout Tools window, and select Fan Relations.





4

Click on the drop-down arrow in the Sort By: field and select the required sort parameter.

The options are:

•None - Elements are passed to the specified layout in the order in which they appear on the original diagram (left to right, top to bottom)
•Area (Ascending) - Elements are passed to the specified layout in order of the screen space they occupy, smallest to largest
•Area (Descending) - Elements are passed to the specified layout in order of the screen space they occupy, largest to smallest
•Name (Ascending) - Elements are passed to the specified layout in alphanumeric order, based on the element name
•Name (Descending) - Elements are passed to the specified layout in reverse alphanumeric order, based on the element name
•Element Type - Elements are grouped by type (for example, Class, Use Case) and in alphanumeric order within the group by name





5

In the Padding (px) field, type the separation required between the selected element and its related elements, in pixels.





6

Select the connector direction to use in determining the related elements to lay out; either:

•Incoming Nodes - to lay out related elements that have the selected element as the target
•Outgoing Nodes - to lay out related elements that have the selected element as the source





7

In the Fan Edge field, click on the drop-down arrow and specify the edge of the selected element from which to lay out the related elements:

•Left - to arrange related elements to the left of the selected element
•Right - to arrange related elements to the right of the selected element
•Top - to arrange related elements from the top of the selected element
•Bottom - to arrange related elements from the bottom of the selected element
