Dependency Report

A Dependency Report shows, for the selected package, a list of any elements that are dependent on another element for their specification. For example, a Use Case derives its specification from the Requirement that it realizes. Each of the elements in the first column is the source or dependent in a Dependency connector to the corresponding target element in the second column.

To view a Dependency report, follow the steps below:

  1. In the Project Browser, right-click on the package to report on; the report includes all sub-packages of this package. The context menu displays.
  2. Select the Documentation | Dependency Report menu option.

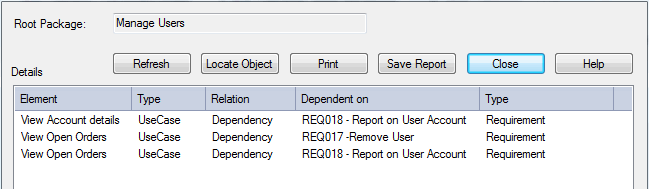

  3. The Dependency Details dialog displays, showing the results of the report. Save or print the results if required.

    DependencyReport




Option

Use to

Root Package

Confirm the root package. All elements and packages under this package appear in the report.

Locate Object

Locate the selected element in the Project Browser.

Refresh

Run the report again.

Details

List dependency details; lists the elements in the current package and the elements that they implement.

Print

Print the list.
