Move Features Between Elements

Using drag and drop, you can move attributes and/or operations from an element in the Project Browser on to another element within the Project Browser.

To copy attributes and operations, see Copy Features Between Elements.

To move element features, follow the steps below:

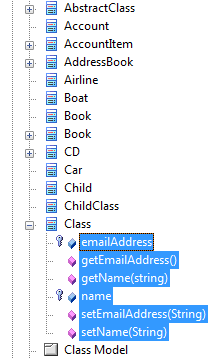

  1. In the Project Browser, locate the attributes and/or operations to move from the target element and select them while holding down [Ctrl] (single item select) or [Shift] (multiple item select).
  2. Holding down the mouse button, drag the attributes and/or operations to the target element. A single feature symbol (and, under some operating systems, the feature name) displays during the move; however all of the selected features are moved.

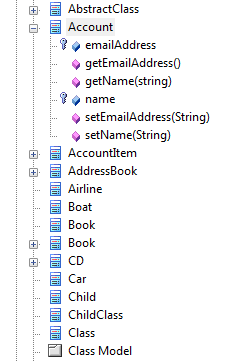

  3. Release the mouse button. The image below shows the final stage of the attribute and operations move between the Class element and the Account element.
