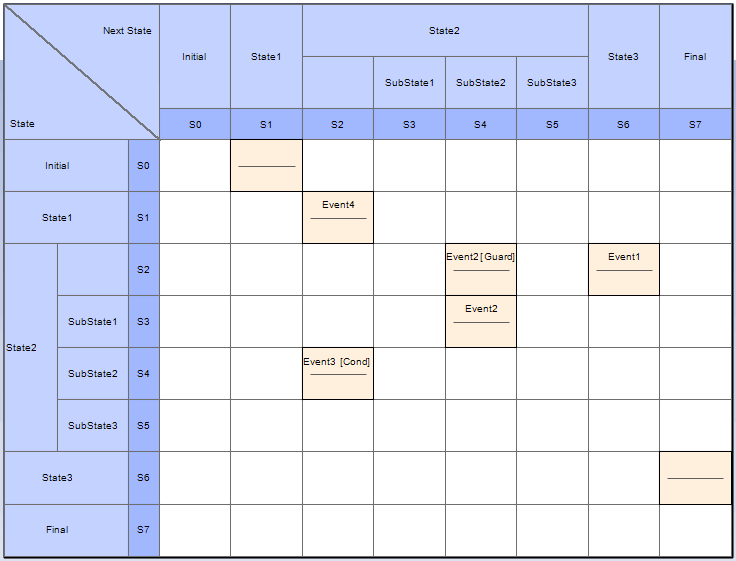

Example State-Next State Table
The rows and columns both indicate states, and the cell at the intersection of a row and column indicates:
- The event that triggers a transition from the current (row) state to the next (column) state
- The condition (or guard) of the event, and
- The effect of the transition
