Global Server Options

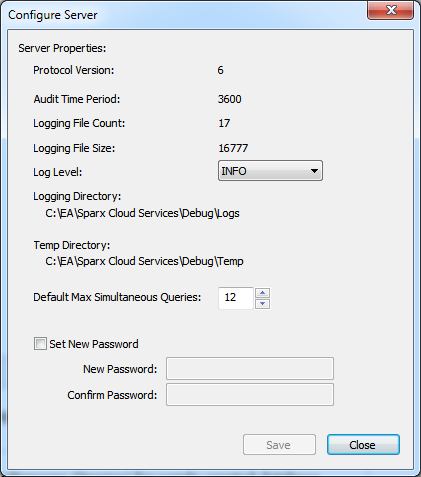

The Configure Server screen displays when you click on the 'Server Options' button on the Main screen. It helps you to configure the global options applied to the Cloud Server. Each of these options can also be set in the configuration file; however, the service does not require a restart if the options are changed using this screen.

Options

Option

Description

Protocol Version

Read-only display showing the highest level of protocol supported by this version of the server.

Audit Time Period

Read-only display showing the number of seconds paused between audit reports.

Logging File Count

Read-only display showing the number of log files that should be retained. All logging is written to files named 'SparxCloudServicesLog-X.log' where X represents the file number.

File 'SparxCloudServicesLog-1.log' is always the current file. When the maximum file size is reached, all existing files are renamed by incrementing the file number and a new 'SparxCloudServicesLog-1.log' created.

Logging File Size

Read-only display showing the maximum file size of each log file. When the file reaches this maximum, a new file is created.

Log Level

Click on the drop-down arrow and select the level of information to be written to the log file.

Logging Directory

Read-only display showing the physical directory into which the log files are saved.

Temp Directory

Read-only display showing the physical path of the temp directory.

Default Max Simultaneous Queries

Provides a default value for the setting of 'Max Simultaneous Queries' when defining connections for a new database configuration.

Set New Password

Select this checkbox to change the password for using the admin client for this server; type in and confirm the new password.
