Model Simulation

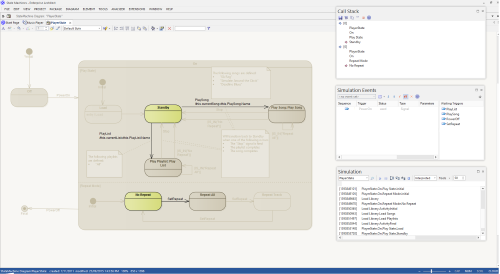

Model Simulation brings your behavioral models to life with instant, real-time behavioral model execution. Coupled with tools to manage triggers, events, guards, effects, breakpoints and simulation variables, plus the ability to visually track execution at run-time, the Simulator is a powerful means of 'watching the wheels turn' and verifying the correctness of your behavioral models. With Simulation you can explore and test the dynamic behavior of models. In the Corporate and above editions, you can also use Javascript as a run-time execution language for evaluating guards, effects and other script-able pieces of behavior.

Extensive support for triggers, trigger sets, nested states, concurrency, dynamic effects and other advanced simulation capabilities, provides a remarkable environment in which to build interactive and working models which help explore, test and visually trace complex business, software and system behavior. With Javascript enabled, it is also possible to create embedded COM objects which will do the work of evaluating guards and executing effects - allowing the simulation to be tied into a much larger set of dependent processes. For example, a COM object evaluating a guard condition on a State Transition might query a locally running process, read and use a set of test data - or even connect to an SOA web service to obtain some current information.

As Enterprise Architect uses a dynamic, script driven Simulation mechanism there is no need to generate code or compile your model before running a simulation. It is even possible to update simulation variables in real time using the Simulation console window. This is useful for testing alternate branches and conditions 'on the fly', either at a set Simulation break point, or when the Simulation reaches a point of stability (for example, when the Simulation is 'blocked').

In the Professional version of Enterprise Architect, you can manually walk through simulations - although no Javascript will execute - so all choices are manual decisions. This is useful for testing the flow of a behavioral model and highlighting possible choices and processing paths.

Simulation Overview

Aspect

See also

Overview of the Model Simulator

How it Looks How It Works

Use of the Simulation window and related windows, and running a simulation

Simulation Windows Run Model Simulation

Set up a simulation and activate a simulation script

Set Up Simulation Script Activate Simulation Script

Set up and use simulation breakpoints

Simulation Breakpoints

Simulate the use of Objects

Objects and Instances in Simulation

The use of different types of Action in simulation

Action Behavior By Type Variable Actions Action Types

Perform dynamic simulation with Javascript

Dynamic Simulation with Javascript Interaction Operand Condition and Message Behavior

The use of Guards and Effects in simulations

Guards and Effects

The use of Triggers in simulations

Simulation Events Window Trigger Sets and Auto-Firing Waiting Triggers Re-Signal Triggers Using Trigger Sets to Simulate an Event Sequence Trigger Parameters Triggers

Call Behaviors and Variables

Call Behaviors

Simulating Activity Returns

Activity Return Value Simulation

Simulating Structured Activity Behavior

Structured Activity Simulation

Simulating multi-threaded processes

Multi-threading - Concurrent State Regions Multi-threading - Forks and Joins

Simulating subprocesses in separate diagrams

Using Composite Diagrams

Performing BPMN Simulations

BPMN Simulation

Simulate Win32 Dialog Behavior

Win32 Dialog Simulation

Notes

  • Currently Javascript is enabled for StateMachines and Activity graphs; it is not enabled for Interaction diagrams
