Script Group Properties

When you create a script you develop it within a script group, the properties of which determine how that script is to be made available to the user - through the Project Browser context menu to operate on objects of a specific type, or through a diagram context menu. You create a Script Group using the first icon on the 'Scripts' tab toolbar.

Access

Ribbon

Code > Tools > Scripting > Scripts > right-click on [Group name] > Group Properties

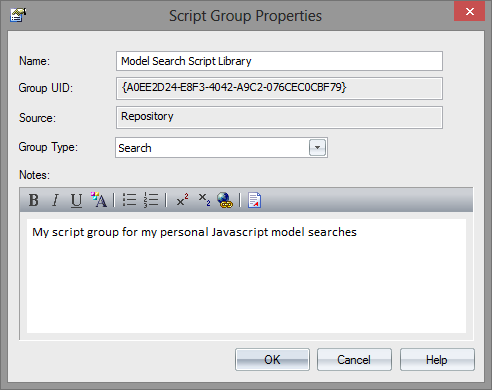

Define the Script Group Properties

Field/Button

Action

See also

Name

Type in the name of the script group.

Group UID

(Read only) The automatically assigned GUID for the group.

Source

(Read only) The location of the template used to create the script.

Group Type

Click on the drop-down arrow and select the type of script contained in the group; this can be one of:

  • Normal - () General model scripts
  • Project Browser - () Scripts that are listed in and can be executed from the Project Browser 'Scripts' context menu option
  • Workflow - () Scripts executed by Enterprise Architect's workflow engine; you can create only VB scripts of this type
  • Search - () Scripts that can be executed as model searches; these scripts are listed in the 'Search' field of the Model Search window, in the last category in the list
  • Diagram - () Scripts that can be executed from the 'Scripts' submenu of the diagram context menu
  • Find in Project - () Scripts that can be executed from the 'Scripts' submenu of a context menu within the Model Search view, on the results of a successfully-executed SQL search that includes CLASSGUID and CLASSTYPE, or a Query-built search
  • Element - Scripts that can be executed from the 'Scripts' submenu of element context menus; accessible from the Project Browser, Diagram, Model Search, Element List, Package Browser and Gantt views
  • Package - Scripts that can be executed from the 'Scripts' submenu of Package context menus; accessible from the Project Browser
  • Diagram - Scripts that can be executed from the 'Scripts' context menu option for diagrams; accessible from the Project Browser and diagrams
  • Link - Scripts that can be executed from the 'Scripts' context menu option for connectors; accessible from diagrams
Workflow Scripts Package Context Menu Model Search Diagram Context Menu

Notes

Type in any comments you need regarding this script group.
