Web Stereotypes

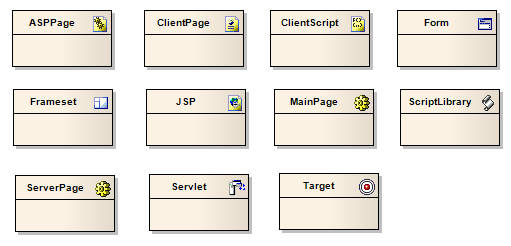

Enterprise Architect supports a number of stereotypes for web page modeling, the graphical elements for which display with a graphical icon instead of the usual «stereotype» format. These stereotypes are only supported for Class elements. These are the various graphical icons and their associated stereotypes:
A similar set of web modeling elements and their relationships are also available through dedicated Web Modeling pages in the Diagram Toolbox.
Set a web icon
Step |
Action |
---|---|
1 |
Create a new Class element in a diagram. |
2 |
Display the Class 'Properties' dialog. |
3 |
In the 'Stereotype' field, either type in the required stereotype name or click on the drop-down arrow and select the required stereotype (as named previously). |
4 |
Click on the . The Class displays as in one of the examples shown. |
