Regular Expression Parser
StateMachine for Regular Expression Parser
The Class RegularExpressionParser is defined with one attribute: bMatch.

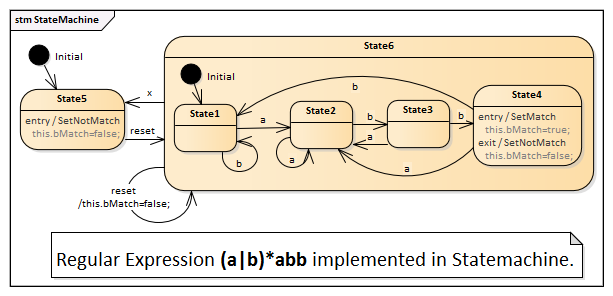

A StateMachine is used to describe the regular expression (a|b)*abb
- The transition triggers are specified as events a, b, x and reset
- On entry to State4, bMatch is set to True; on exit from State4, bMatch is set to False
- On entry to State5, bMatch is set to False
- On self transition of State6, bMatch is set to False
Customize index.html and statemachineGUI.js
Make these changes to the generated files:
- Create an HTML input field and an image to indicate the result
- Create the function SetResult to toggle the pass/fail image
- Create the function getEventStr, which will return 'a' on 'a' and 'b' on 'b', but will return 'x' on any other character
- On initialize, broadcast 'reset'
- On the broadcast event, request the runtime variable 'regxParser.bMatch'
In statemachineGUI.js, find the function onRuntimeValueResponse
- In 'regxParser.bMatch', we will receive 'True' or 'False' and pass it into SetResult to update the image
The Complete Example
