Generate Activity Diagram

When you create a scenario on an element, and then generate an Activity diagram from the scenario, an Activity is generated as a child of the selected element to act as a container for the diagram.

Each scenario step is modeled as an Activity
The values of the Uses, Results and State columns for each step are added as memo Tagged Values of the corresponding Activity

Access

On a diagram or in the Project Browser, select an element and:

Ribbon	Design > Element > Manage > Properties > Scenarios > Structured Specification : \| Activity or Design > Element > Manage > Specific Properties Page > Scenarios > Structured Specification : \| Activity
Context Menu	Right-click on element \| Properties > Scenarios > Structured Specification : \| Activity or Right-click on element \| Properties Page \| Scenarios > Structured Specification : \| Activity
Keyboard Shortcuts	Alt+Enter : Scenarios > Structured Specification : \| Activity or Shift+Alt+S > Structured Specification : \| Activity
Other	Double-click on Element : Scenarios > Structured Specification : \| Activity

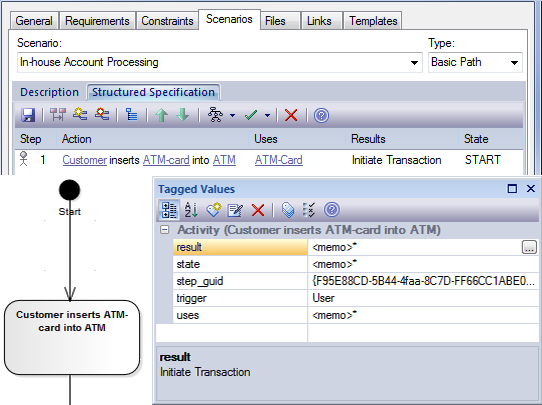

Example

Diagram Types

There are three additional variations of the Activity diagram that you can generate.

Diagram	Detail	See also
Activity with ActivityParameter	The values of the Uses and Results columns are modeled as ActivityParameters The ActivityParameters are added to the Project Browser and not to the diagram The value of the State column is added as a Tagged Value of each Activity	ActivityParameter
Activity with Action	The scenario steps are modeled as Actions The values of the Uses, Results and State columns are added as Tagged Values of each Action	Action
Activity with ActionPin	The scenario steps are modeled as Actions The values of the Uses and Results columns are modeled as Input Pins and Output Pins respectively ActionPins are added to the Project Browser and not to the diagram The value of the State column is added as a Tagged Value of each Action	Action Pin
