Generate StateMachine Diagram

When you create a scenario on an element and then generate a StateMachine diagram, a StateMachine is created as a child of the selected element to act as a container for the diagram.

Each value in the State column is modeled as a State
The scenario steps become the Transition connectors between the States
The values of the Uses and Results columns are added as Tagged Values of the Transition connectors

Access

On a diagram or in the Project Browser, select an element and:

Ribbon	Design > Element > Manage > Properties > Scenarios > Structured Specification : \| State or Design > Element > Manage > Specific Properties Page > Scenarios > Structured Specification : \| State
Context Menu	Right-click on element \| Properties > Scenarios > Structured Specification : \| State or Right-click on element \| Properties Page \| Scenarios > Structured Specification : \| State
Keyboard Shortcuts	Alt+Enter : Scenarios > Structured Specification : \|State or Shift+Alt+S > Structured Specification : \|State
Other	Double-click on Element : Scenarios > Structured Specification : \| State

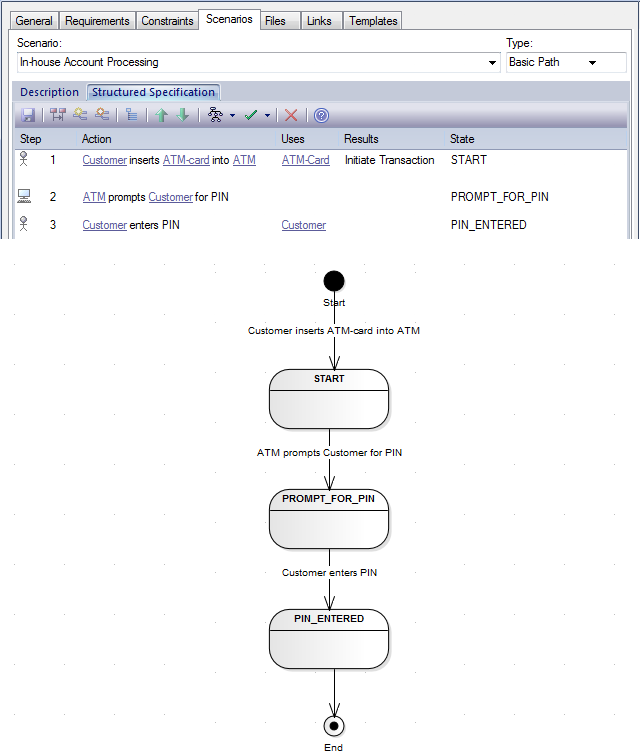

Example
