Data Sets

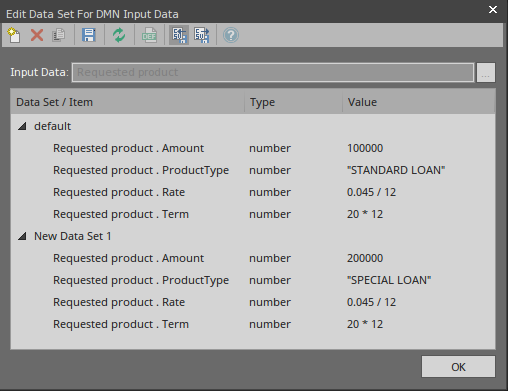

Each InputData can define multiple data sets. With this feature, the DMN Simulation can quickly test the result of a decision by choosing different data sets.
- The values in the 'default' data set will shown in the DMN Expression window when the InputData is selected
- You can add, duplicate or delete a dataset and set an existing dataset as default
- You can export the datasets to a CSV file and import them from a CSV file
Access
Ribbon |
Simulate > Decision Analysis > DMN > DMN Expression > click on InputData item : |
Other |
In a diagram, double-click on the DMN InputData element : |
Toolbar Options
Option |
Description |
See also |
---|---|---|
![]() |
Click on this button to create a new dataset. |
|
![]() |
Click on this button to delete the selected dataset. |
|
![]() |
Click this button to duplicate the selected dataset. |
|
![]() |
Click on this button to save the datasets to the InputData. |
|
![]() |
Click on this button to reload the datasets for the InputData. |
|
![]() |
Click on this button to set the selected dataset as default. |
|
![]() |
Click on this button to import datasets from a CSV file. |
|
![]() |
Click on this button to export the datasets to a CSV file. |
