Use Case

A Use Case Element used in Use Case diagrams as modeled in Sparx Systems Enterprise Architect.


A Use Case is a UML modeling element that describes how a user of the proposed system interacts with the system to perform a discrete unit of work. It describes and signifies a single interaction over time that has meaning for the end user (person, machine or other system), and is required to leave the system in a complete state: the interaction either completed or rolled back to the initial state. A Use Case:

  • Typically has requirements and constraints that describe the essential features and rules under which it operates
  • Can have an associated Sequence diagram illustrating behavior over time; who does what to whom, and when
  • Typically has scenarios associated with it that describe the workflow over time that produces the end result; alternative workflows (for example, to capture exceptions) are also enabled

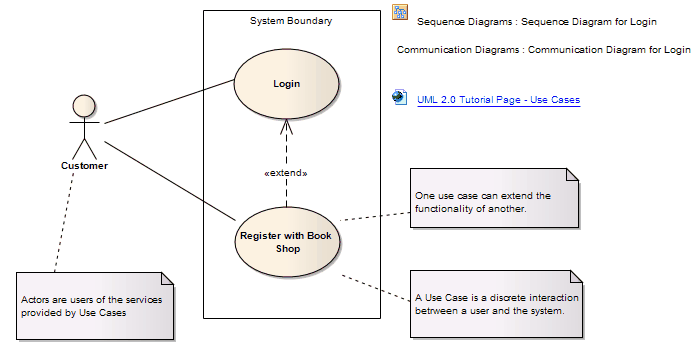

Example Use Case diagram

UML Use Case diagram example in Sparx Systems Enterprise Architect.

If extending a Use Case, you can specify the points of extension with Use Case Extension Points. To display the attributes, operations or constraints of a Use Case on a diagram, use Rectangle Notation.

Enterprise Architect also provides two stereotyped Use Cases: the Test Case and the Business Use Case.

Toolbox icon

Use Case element

Learn more

OMG UML Specification:

The OMG Unified Modeling Language specification, (v2.5.1, p.649) states:

A UseCase specifies a set of actions performed by its subjects, which yields an observable result that is of value for one or more Actors or other stakeholders of each subject.
