Graphical Issue in an exported emf-file

[kMarten]

Hello,

I discovered an issue regarding the export of models based on an created profile using the emf export.

Step by step:

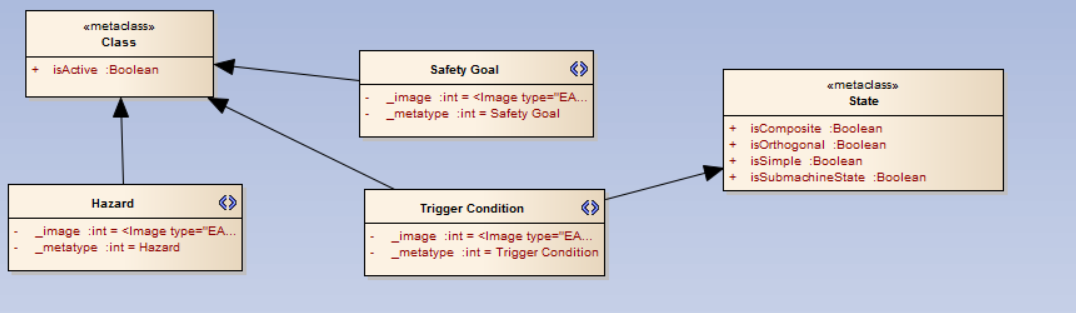

The "problem class" is called "Trigger Condition". It derives from Class (technically) and State (theoretically)

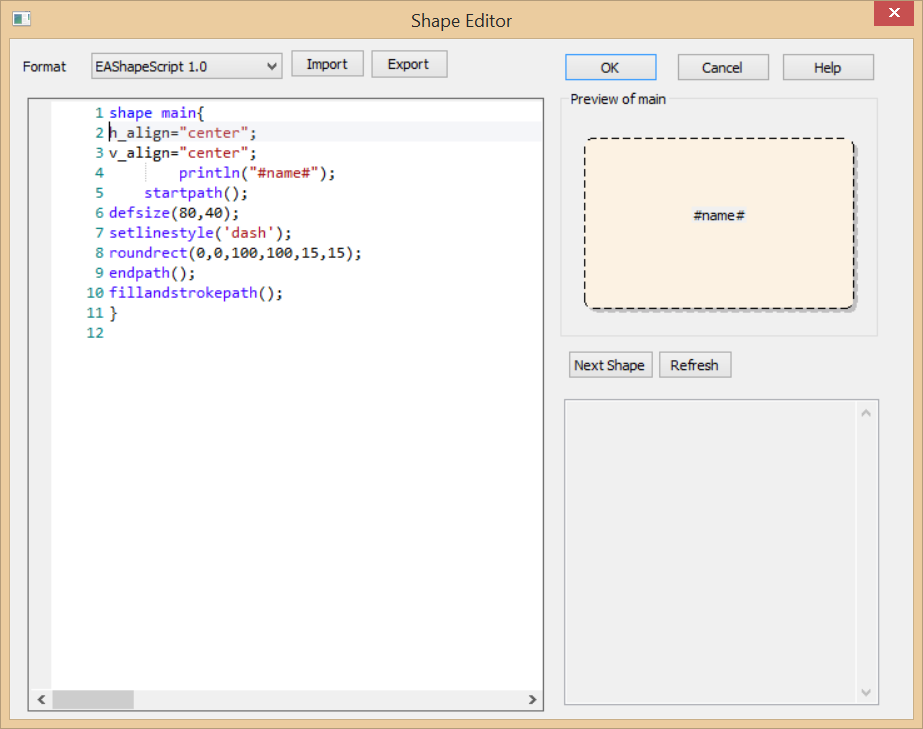

The "Trigger Condition" is supposed to look like a roundect with dashed lines. Thats what i defined in the shape editor.

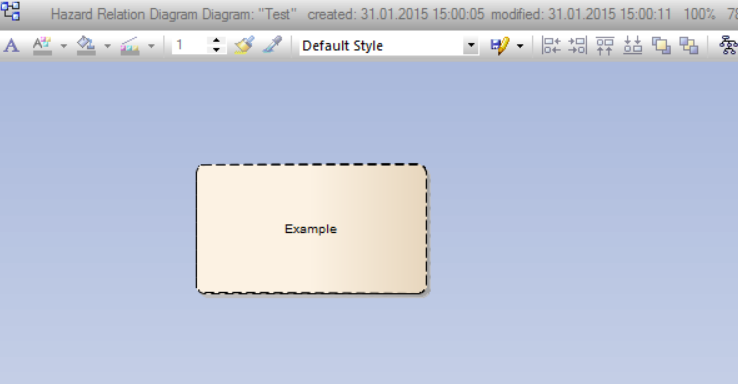

In a created model, the "Trigger Condition" now looks like it is supposed to be:


The export to .png also looks like it is supposed to be


But the export to .emf fucks the whole shape up


Now i need your help! Is this an known issue and could anybody offer me a solution to my problem?

Thanks for your help

KMarten

[qwerty]

Please report that as bug via the link bottom right of this page.

q.

[kMarten]

Hi Kevin,

Regarding the issue you mentioned below.

Our developers have confirmed that this is a bug and it is logged to be fixed. We cannot yet say when (in which build) the fix will be implemented.

If you have further questions or issues please let us know.
Best Regards,

Simon Cotching
Sparx Systems Pty Ltd
