General Board / Re: How to auto generate documentation from report packages?

« on: January 24, 2022, 10:56:19 pm »

I think I have the same problem here:

I want to update my <<report specification>> element by script, like RunReport(...). This command should replace or add the generated report as a LinkedDocument to the element.
By hand, this is performed by clicking on the element.

Best regards
T.Frank

2

General Board / Simulation (internal) of a simple state machine fails

« on: May 19, 2021, 01:28:51 am »

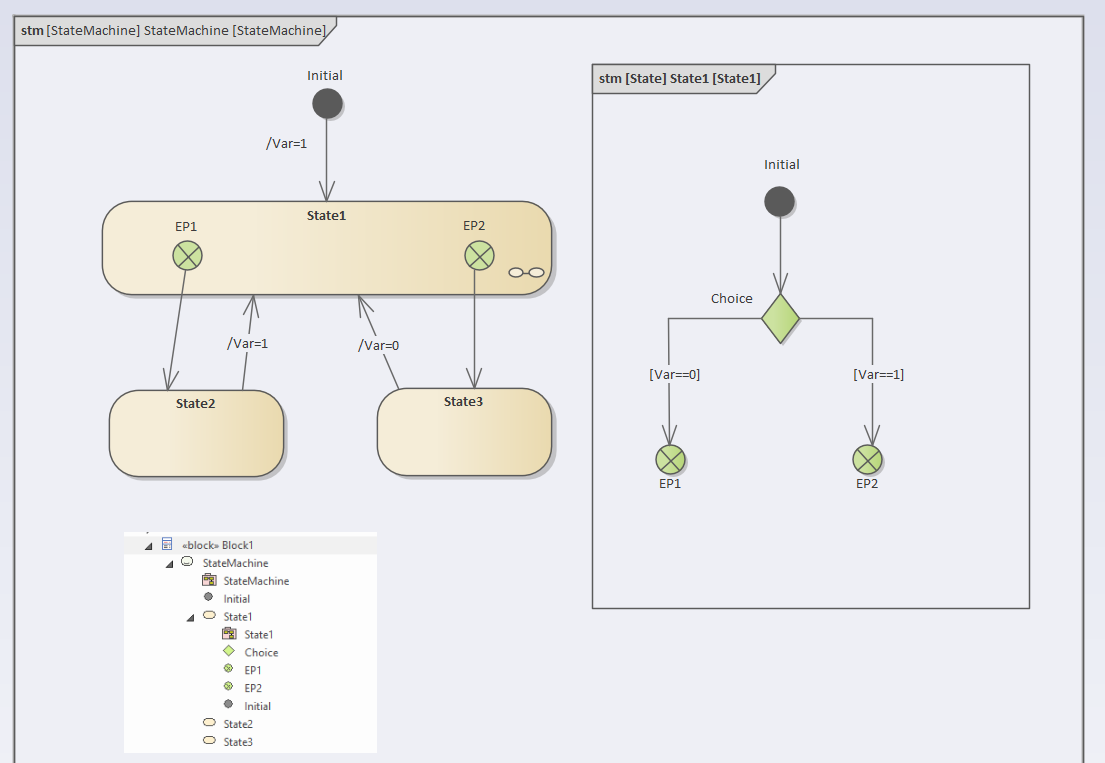

I have designed a simple endless running state machine into two diagrams. Unfortunately, the internal simulation ends without any understandable reasons at different points, regarding of its start value (Val=1 or Val=0) and by random. Sometimes it works a full cycle, so it can't be totally wrong.



Any hints? Any ideas?

Update:

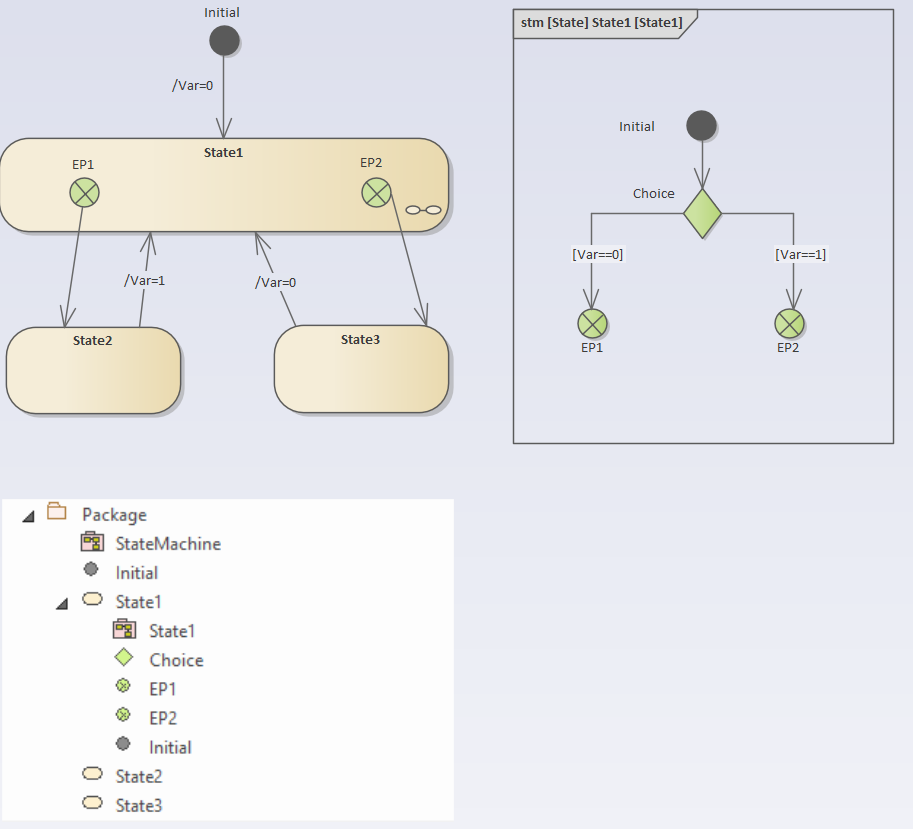

It works perfectly, if I don't use the state machine element. The elements and the diagram are only moved, so there is no hidden error in it.



I don't want to do without it because I want to make use of executable state machines later on.

Thilo
