ODM Commands

The MDG Technology for ODM provides four management commands to help you maintain your ODM models:

  • Export OWL/RDF models as a .rdf or .xml file
  • Import OWL or RDF content (in .owl or .rdf XML file format) as an ODM model Package
  • Create a new namespace definition for an rdfDocument or owlOntology Package
  • Create a new label definition for a valid RDF or OWL element (such as an owlClass, objectProperty, rdfClass or rdfProperty)

Access

Ribbon

Specialize > Technologies > ODM > Define New Label

Specialize > Technologies > ODM > Define New Namespace

Specialize > Technologies > ODM > Export OWL/RDF

Specialize > Technologies > ODM > Import OWL/RDF

Context Menu

Right-click on Package:

Specialize > ODM > Define New Label

Specialize > ODM > Define New Namespace

Specialize > ODM > Export OWL/RDF

Specialize > ODM > Import OWL/RDF

Commands

Command

Detail

See also

Export OWL/RDF

In the Project Browser, select the rdfDocument or owlOntology Package to export.

Select the command Export OWL/RDF.

A browser dialog displays, on which you specify the file location to export to, and the .owl or .rdf filename.

Click on the Save button.

The Package content is exported to the specified file.

Import OWL/RDF

In the Project Browser, select the rdfDocument or owlOntology Package into which to import the .owl or .rdf file.

Select the command Import OWL/RDF.

A browser dialog displays, through which you locate and select the file to import.

Click on the Open button.

The file content is imported into the selected Package.

Define New Namespace

Ensure that the 'Show Duplicate Tags' checkbox is selected in the 'Preferences' dialog ('Start > View > Preferences > Objects').

In the Project Browser, select the RDF or OWL Package to be allocated a new namespace.

Select the 'Define New Namespace' command.

Double-click on the selected Package to display the Package 'Properties' dialog, and select the 'RDF' page. Notice the additional namespaceDefinition tag.

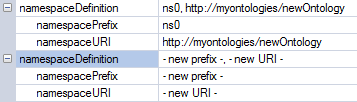

Defining a new namespace

Click on the namespacePrefix and namespaceURI 'value' fields for the new namespace definition, and type in the appropriate new values.

If necessary, click on the previous namespaceDefinition tag and on the Delete icon icon in the 'RDF' page toolbar.

Click on the OK button.

Define New Label

Ensure that the 'Show Duplicate Tags' checkbox is selected in the 'Preferences' dialog ('Start > View > Preferences > Objects').

In the Project Browser, select the RDF or OWL element to be allocated a new label.

Select the 'Define New Label' command.

Double-click on the selected element to display the element 'Properties' dialog, and select the 'RDF' page. Notice the additional label tag.

Defining a new label

Click on the 'language' and 'value' fields for the new label definition, and type in the appropriate new values.

If necessary, click on the previous label tag and on the Delete icon icon in the 'RDF' page toolbar.

Click on the OK button.
