Represents

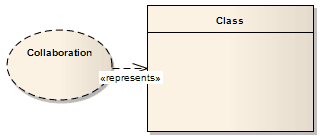

A Represents connector between Collaboration and Class elements.

Description

The Represents connector indicates that a Collaboration is used in a classifier, typically in a Composite Structure diagram. The connector is drawn from the Collaboration to its owning classifier.

Toolbox icon

Represents connector
