Select Property Dialog
The 'Select Property' dialog is a specific instance of the 'Select <Item>' dialog; it is used to select Ports, Parts, Attributes and Association Ends as redefined or subsetted properties, from a hierarchical list of Classes and their contained properties in the model. As an example, consider this section of the model:

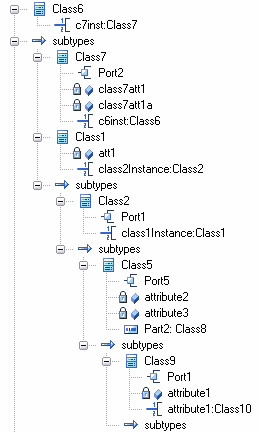

This would be represented in the dialog as shown:
Locate and click on the required object to select it, then click on the(to select several objects at once, press and hold while you click on each object).
- AssociationEnds should be owned by the Class to be listed in the dialog
