Port Configuration

When setting up the Pro Cloud Server you will need to define at least one Port which will be used for communication between the Pro Cloud Server and Enterprise Architect when accessing a Cloud model.

Ports can be configured via the Ports tab in the Cloud Configuration client.

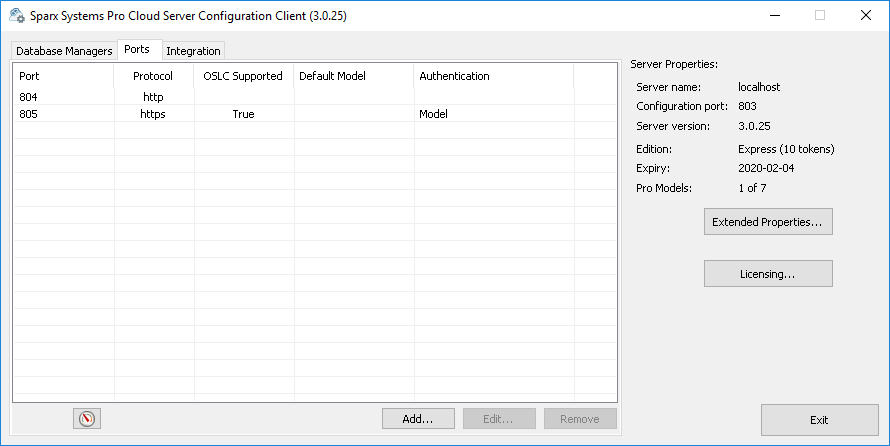

The Ports Tab

The 'Ports' tab provides information and a number of options:



See also

Port List

The main area of the Ports tab provides a list of the existing Port definitions.

These Port settings are also covered in more detail in the Add a Port topic.


Port - The Port Number

Protocol - Displays the transfer protocol, http or https that the Port has been configured to communicate on.

OSLC Supported - Displays True if OSLC support is enabled for this port. OSLC Support is required for WebEA access.

Default Model - If the port is configured to open a specific default model, it's name is displayed

Authentication - Indicates what type of Authentication is required (if any).

Resource Monitor

Located in the lower left of the Ports Tab, this button can be used to open the Windows Resource Monitor. This allows you to check which Ports are already in use before adding a new Port Definition.

Please note: this will open the Windows Resource Monitor for the current machine, which is only relevant if the Configuration Client is running on the machine hosting the Cloud Server.


Click on this button to add a new Port Definition.


Click on this button to edit the configuration of the selected Port. Editing a Port provides the same options as when adding a new one, however the Port number cannot be changed.


Click on this button to permanently delete the selected Port Configuration
