Java Code Generated From Legacy StateMachine Template

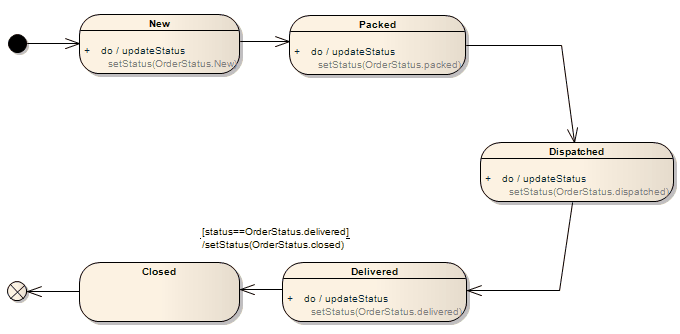

UML State-machine Diagram in Sparx Systems Enterprise Architect.

     private enum StateType: int

     {

          ProcessOrder_Delivered,

          ProcessOrder_Packed,

          ProcessOrder_Closed,

          ProcessOrder_Dispatched,

          ProcessOrder_New,

          ST_NOSTATE

     }

     private enum TransitionType: int

     {

          ProcessOrder_Delivered_to_ProcessOrder_Closed,

          TT_NOTRANSITION

     }

     private enum CommandType

     {

          Do,

          Entry,

          Exit

     }

     private StateType currState;

     private StateType nextState;

     private TransitionType currTransition;

     private boolean transcend;

     private StateType ProcessOrder_history;

     private void processOrder_Delivered(CommandType command)

     {

          switch(command)

          {

               case Do:

               {

                    // Do Behaviors..

                    setStatus(Delivered);

                    // State's Transitions

                    if((status==Delivered))

                    {

                         nextState = StateType.ProcessOrder_Closed;

                         currTransition = TransitionType.ProcessOrder_Delivered_to_ProcessOrder_Closed;

                    }

                    break;

               }

               default:

              {

                   break;

              }

          }

     }

     private void processOrder_Packed(CommandType command)

     {

          switch(command)

          {

               case Do:

               {

                    // Do Behaviors..

                    setStatus(Packed);

                    // State's Transitions

                    nextState = StateType.ProcessOrder_Dispatched;

                    break;

               }

               default:

               {

                    break;

               }

          }

     }

     private void processOrder_Closed(CommandType command)

     {

          switch(command)

          {

               case Do:

               {

                    // Do Behaviors..

                    // State's Transitions

                    break;

               }

               default:

               {

                    break;

               }

          }

     }

     private void processOrder_Dispatched(CommandType command)

     {

          switch(command)

          {

               case Do:

               {

                    // Do Behaviors..

                    setStatus(Dispatched);

                    // State's Transitions

                    nextState = StateType.ProcessOrder_Delivered;

                    break;

               }

               default:

               {

                    break;

               }

          }

     }

     private void processOrder_New(CommandType command)

     {

          switch(command)

          {

               case Do:

               {

                    // Do Behaviors..

                    setStatus(new);

                    // State's Transitions

                    nextState = StateType.ProcessOrder_Packed;

                    break;

               }

               default:

               {

                    break;

               }

          }

     }

     private void StatesProc(StateType currState, CommandType command)

     {

          switch(currState)

          {

               case ProcessOrder_Delivered:

               {

                    processOrder_Delivered(command);

                    break;

               }

               case ProcessOrder_Packed:

               {

                    processOrder_Packed(command);

                    break;

               }

               case ProcessOrder_Closed:

               {

                    processOrder_Closed(command);

                    break;

               }

               case ProcessOrder_Dispatched:

               {

                    processOrder_Dispatched(command);

                    break;

               }

               case ProcessOrder_New:

               {

                    processOrder_New(command);

                    break;

               }

               default:

               break;

          }

     }

     private void TransitionsProc(TransitionType transition)

     {

          switch(transition)

          {

               case ProcessOrder_Delivered_to_ProcessOrder_Closed:

               {

                    setStatus(closed);

                    break;

               }

               default:

               break;

          }

     }

     private void initalizeStateMachine()

     {

          currState = StateType.ProcessOrder_New;

          nextState = StateType.ST_NOSTATE;

          currTransition = TransitionType.TT_NOTRANSITION;

     }

     private void runStateMachine()

     {

          while (true)

          {

               if (currState == StateType.ST_NOSTATE)

               {

                    break;

               }

               currTransition = TransitionType.TT_NOTRANSITION;

               StatesProc(currState, CommandType.Do);

               // then check if there is any valid transition assigned after the do behavior

               if (nextState == StateType.ST_NOSTATE)

               {

                    break;

               }

               if (currTransition != TransitionType.TT_NOTRANSITION)

               {

                    TransitionsProc(currTransition);

               }

               if (currState != nextState)

              {

                   StatesProc(currState, CommandType.Exit);

                   StatesProc(nextState, CommandType.Entry);

                   currState = nextState;

               }

          }

     }
