Project Transfer using Native XML

We live in an age of information and digital disruption, where individuals and companies have an almost insatiable thirst for information and knowledge. While it is possible to access the valuable corporate modeling assets stored in an Enterprise Architect repository from any device in any location, there still remain scenarios where a modeler will want to extract or exchange the information stored in the repository. Enterprise Architect is compliant with standards and has always provided a facility to export the models to the standards-based XMI format, but it now also provides a Native XML format export and import facility for the transfer of an entire project's data.  This is a two step process that involves:

  1. Opening the source project in Enterprise Architect and exporting it to Native XML using the 'Export Project to Native XML' dialog.
  2. Opening the target project in Enterprise Architect and importing the Native XML files exported in the first step, using the 'Import Project from Native XML' dialog.

Regardless of the size of the repository, the model content - including all elements, connectors, documents and reference data - can be conveniently exported and exchanged between repositories at Internet speed. Exporting the data from one repository and importing it into another is fast and can conveniently be used with any type of repository connection (Cloud, Server or file system) and any type of repository (RDMS or file). There is a range of other uses for the exchange of repository content, including such things as backing-up repositories, record keeping or exchange with other tools.

The feature is particularly useful for Cloud-based models where a modeler does not have direct access to the Cloud hosting environment and the data sources are protected by private subnet security. The Native XML format export and import can be used effectively as a project transfer option for Cloud repositories. The data transfers would typically be secured with secure socket layer connections, preventing the data from being compromised in either the exporting or importing phases of a transfer.

Access

Ribbon

Configure > Model > Transfer > Native XML > Export Complete Project

Configure > Model > Transfer > Native XML > Import Complete Project

Export Project Data to Native XML files

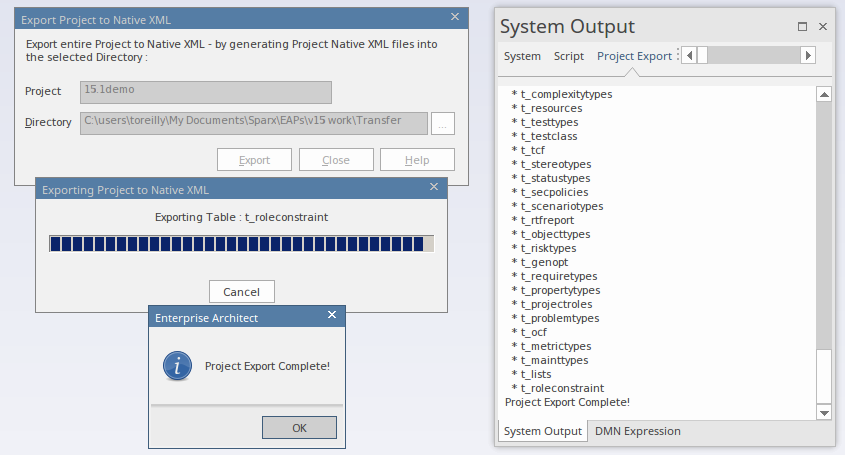

Use the 'Export Project to Native XML' dialog to export the current project to Native XML. The export process will generate multiple Native XML files, representing data of the project.

Option

Action

See also

Project

Displays the name of the current project (selected in the Browser window).

Directory

Type in the path of the directory in the file system into which the Native XML files, representing the project data, are to be generated; alternatively, click on the Browse. button and browse for the directory location.

Note:

  • If the directory already contains Project Transfer specific XML files ( from a previous Project Transfer export), all these files will be deleted prior to exporting project data
  • If the directory contains non-Project Transfer specific files, you will be prompted to create a sub-directory to export project data

Export

Click on this button to initiate the Native XML export.

When the export is successfully completed, the specified directory will contain multiple Native XML files representing the project data.

Note: The following data will not be exported as a part of the Project Transfer:

  • Audit Logs
  • Image and Image-maps of diagrams
  • HTML Pages of Linked Documents
Auditing Cloud Page

Close

Click on this button to close the 'Export Project to Native XML' dialog.

Help

Click on this button to display this Help topic.

Import Project Data from Native XML files

Use the 'Import Project from Native XML' dialog to import Native XML files generated by the export process into the current (target) project. The contents of the current project will be deleted prior to importing the Native XML files; if necessary, take a backup of the current project prior to importing the files.

Option

Action

See also

Project

Displays the name of the current project.

Directory

Type in the path of the directory in the file system into which the Native XML files, representing the project data, were generated by the Export Project Data to Native XML files process; alternatively, click on the Browse. button and browse for the directory location.

Import

Click on this button to initiate the Native XML import.

The import progress will be displayed in the 'Project Import' tab in the System Output window.

The System Output Window

Close

Click on this button to close the 'Import Project from Native XML' dialog.

Help

Click on this button to display this Help topic.

Notes

  • Take a backup of the target project to ensure that you can recover any important information it already contains; in a transfer, all records in the target repository are overwritten
  • In the Corporate, Unified and Ultimate editions of Enterprise Architect, if security is enabled you must have 'Transfer Data' permission and:
         -  'Export XMI' permission to export project data to Native XML
         -  'Import XMI' permission to import project data from Native XML
  • Native XML files, representing project data, cannot be imported using the 'Import Package from XML' dialog
  • If you are connected to a SQL Server repository, you require ALTER permission on the t_image table in Enterprise Architect to be able to import model images
  • Project can also be exported to Native XML using the Automation Interface function ExportProjectXML()
