Web Stereotypes

Enterprise Architect supports a number of stereotypes for web page modeling, the graphical elements for which display with a graphical icon instead of the usual «stereotype» format. These stereotypes are only supported for Class elements. These are the various graphical icons and their associated stereotypes:

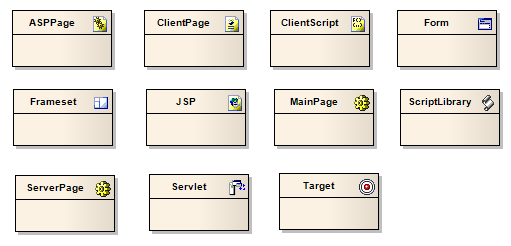

Web design stereotypes in Sparx Systems Enterprise Architect.

A similar set of web modeling elements and their relationships are also available through dedicated 'Web Modeling' pages in the Diagram Toolbox.

Set a web icon

Step

Action

1

Create a new Class element in a diagram.

2

Display the Class 'Properties' dialog.

3

In the 'Stereotype' field, either type in the required stereotype name or click on the drop-down arrow and select the required stereotype (as named previously).

4

Click on the OK button.

The Class displays as in one of the examples shown.
