Connector Tagged Values

You can define Tagged Values for a connector and, for Association and Aggregation connectors, set additional Tagged Values for the source role and/or target role.

You can set these Tagged Values separately on the 'Tags' tab of the Properties window or 'Properties' dialog.

Access

Ribbon

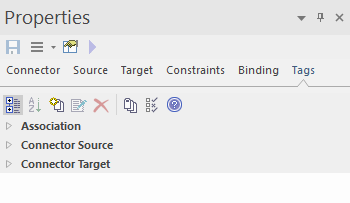

Start > Desktop > Design > Properties > Tags > click on the connector on the diagram     (Properties window)

Context Menu

Right-click on Connector | Properties > General > Tags    ('Properties' dialog)

Other

Double-click on Connector > General > Tags     ('Properties' dialog)

Set Tagged Values for the connector

Step

Action

See also

1

Click on the connector type name, Connector Source or Connector Target as required.

2

Either click on the New tag button. icon in the toolbar, or press Ctrl+N.

The 'Tagged Value' dialog displays.

3

In the 'Tag' field type the tag name, or click on the drop-down arrow and select a predefined Tagged Value type.

4

In the 'Value' field, type the value for the tag.

5

Click on the OK button to save the changes and close the dialog.

The Tagged Value is displayed under the object type you selected in step 1.
