Select Property Dialog

The 'Select Property' dialog is a specific instance of the 'Select <Item>' dialog; it is used to select Ports, Parts, attributes and Association Ends as redefined or subsetted properties, from a hierarchical list of Classes and their contained properties in the model. As an example, consider this section of the model:

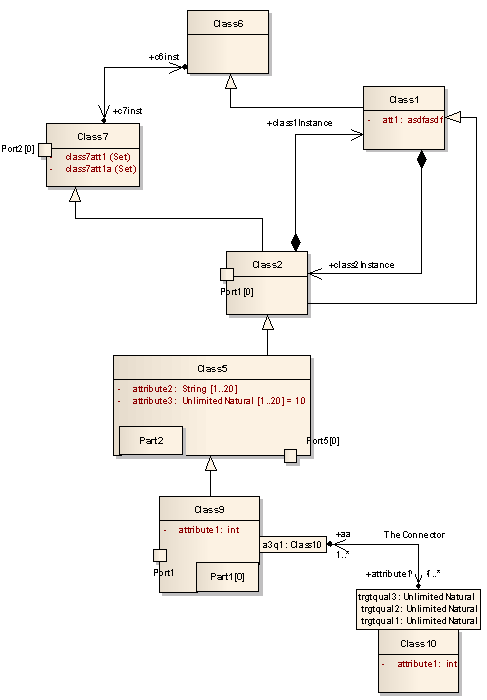

Showing a UML Class diagram showing a complex UML Class hierarchy.

This would be represented in the dialog as shown:

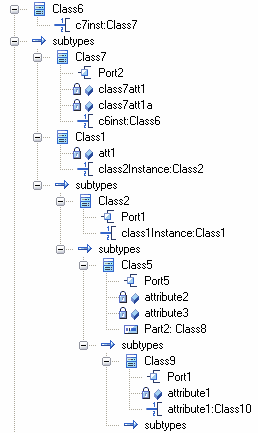

Showing the selection of a property from a complex UML Class hierarchy.

Locate and click on the required object to select it, then click on the OK button (to select several objects at once, press and hold Ctrl while you click on each object).


  • AssociationEnds should be owned by the Class to be listed in the dialog
