Template Classes

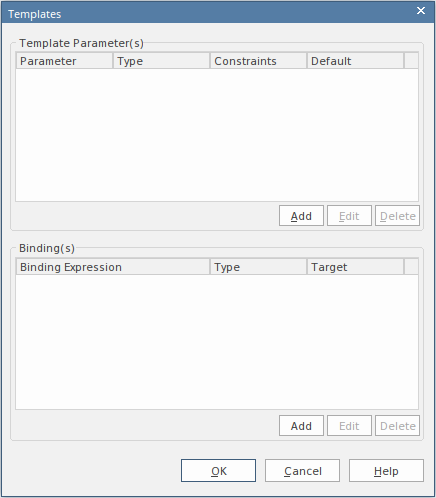

If you are working with Parameterized Classes or Binding Classes, you can use the 'Templates' dialog to define:

• The Parameterized Class template parameters and
• The Binding expressions on a Binding Class

Access

Click on the appropriate Class element in the Browser window or in a diagram.

Use

In the 'Template Parameter(s)' panel, click on the Add button to add a new parameter, or click on an existing parameter and on the Edit button to edit the parameter; in either case, the 'Template Parameter' dialog displays.

In the 'Binding(s)' panel, click on the Add button to add a new binding expression or click on an existing expression and on the Edit button to edit the expression. When you click on the Add button, a short context menu displays from which you select the type of relationship to generate, and then you define the binding expressions.

If either a template parameter or a binding expression is no longer required, click on it and then click on the corresponding Delete button.

Learn more

• Parameterized Classes (Templates)
• Template Binding
