Activate Simulation Script

An Execution Script is configured for a model Package defining the Simulation parameters. The most common reason for activating an Execution Script is when multiple Simulation Scripts are configured against a Package and you want to run a specific one.



Execute > Tools > Analyzer

Develop > Source Code > Execution Analyzer

Analyzer Window

Click the Analyzer Script checkbox to make it active

Keyboard Shortcuts


Activate a Simulation Script for Execution



See also

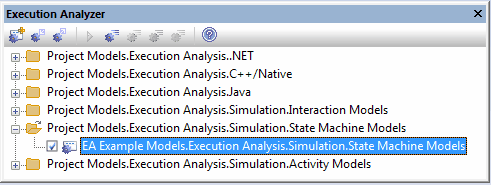

In the Execution Analyzer window, select the required Execution Script. This makes it the current default for your open model, so that clicking on the Simulation Run button will automatically invoke this Simulation Script.

You can provide initial Javascript for a simulation using Analyzer Scripts


Click on the checkbox to the left of the script to activate it.


Select the 'Simulate > Simulator > Open Simulation Window' ribbon option to execute the simulation.

Run Model Simulation
