Input Parameter Values for Simulation
As a Business Knowledge Model is self-contained, it is possible to perform a simulation 'Unit Test' by providing a default set of values as an input for its parameters. These values can be defined in the Input Parameter Values for Simulation tab in the DMN Expression window.
Parameters of a Business Knowledge Model (BKM)

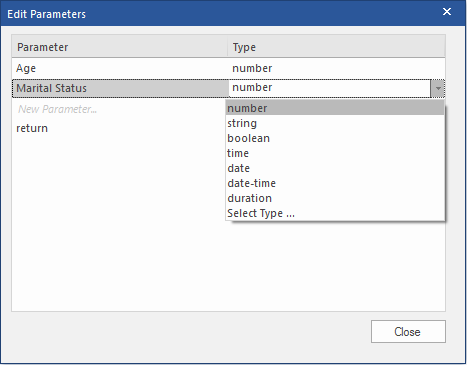

Parameters for a BKM are accessed from the DMN Expression window, using the
on the toolbar:

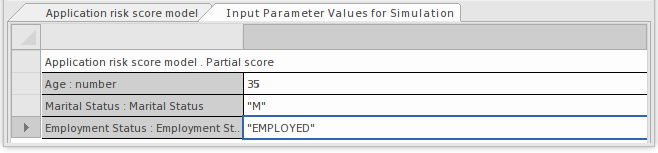

A default set of values for these parameters, that can be used in a simulation of the BKM, are defined in the 'Input Parameter Values for Simulation' tab on the DMN Expression window:
With these parameters set the BKM can be tested using the Simulation
button.
Simulation Examples
These are two examples of using the Input Parameter Values for Simulation.
Type |
Description |
See also |
|---|---|---|
|
Decision Table |
An example simulation of a BKM Decision Table element based on values set in the Input Parameter Values for Simulation tab. |
Decision Table Simulation Example |
|
Literal Expression |
An example simulation of a BKM Literal Expression element based on values set in the Input Parameter Values for Simulation tab. |
Literal Expression Simulation Example |
