Save Journal to File
It is possible to create a report, detailing the Journal entries attached to a model element, and save that report to a document in your file system. You can choose to write the document using RTF, DOCX or PDF file formats.
Access
Menu Option |
In the Journal window, click on the menu icon Choose the menu option "Save Journal to File". |
The Dialog Options

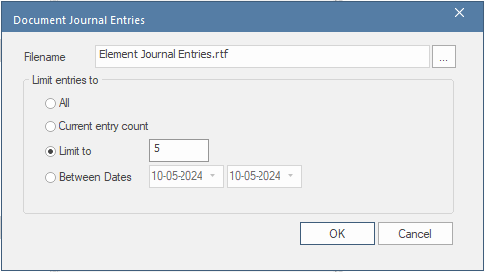

Choosing the menu option "Save Journal to File" will open the 'Document Journal Entries' dialog, allowing you to specify the filename into which the Journal report will be saved, and also to specify the number or range of entries to be included in the report.
In the Filename field, type a full pathname for the output file, or use the '...' button to browse for a folder and file.
Choose an option for specifying the number or range of Journal entries to include in the report. (The text entered on any given day is considered to be one entry in the Journal.)
Option |
Description |
---|---|
All |
Include all Journal entries for the selected element in the report. |
Current Entry count |
Use the 'entry count' currently selected for the Journal window, to select the entries to be included. (All entries visible in the Journal window will be included in the report.) |
Limit to |
Specify the number of Journal entries (days) to be included. |
Between Dates |
Specify a range of dates for which the Journal entries will be included. |
Document Template
The document is created using the template "Element Journal". A default version of this template can be found in the Resources tab of the Browser window. It is located under "Report Templates > System Templates > Templates". You can also create a custom version of the template, by right-clicking on the system template and choosing the menu option "Override". This creates a copy of the system template, within the "Custom Templates" area and opens the new template in the template editor. Here, you can modify the template to suit your requirements. Where a customised version of the template "Element Journal" exists, it will be used instead of the system template.
