Create BPEL 1.1 Model Structure
A BPEL 1.1 model consists of a BPEL Process (containing a BPEL diagram and mappable BPMN 1.1 constructs) and other supporting elements (like BPMN 1.1 Assignment, BPMN 1.1 Web Service) required for generating BPEL 1.1 code. A sample BPEL 1.1 Package structure can be created in the Project Browser, using the 'Select Model(s) (Model Wizard)' dialog. You can use this Package structure as a template for developing your BPEL Process.
Access
|
Ribbon |
Design > Package > Insert > Insert using Model Wizard |
|
Context Menu |
Project Browser | Right-click on Package | Add a Model using Wizard |
|
Keyboard Shortcuts |
|
|
Other |
Project Browser caption bar menu : New Model from Pattern |
Create a new BPEL 1.1 Package structure as a starting point for developing a BPEL Process
Step |
Action |
See also |
|---|---|---|
|
1 |
Select the root node or a Package in the Project Browser. |
|
|
2 |
Click on the 'New Model from Pattern' drop-down menu option in the Project Browser header. |
Project Browser Toolbar |
|
3 |
Select the value BPMN 1.1 i n the Technology section. |
Model Wizard |
|
4 |
Check the option 'BPEL 1.1 Model' in the 'Name' section. |
|
|
5 |
Click on the to create the sample BPEL 1.1 Package structure. |

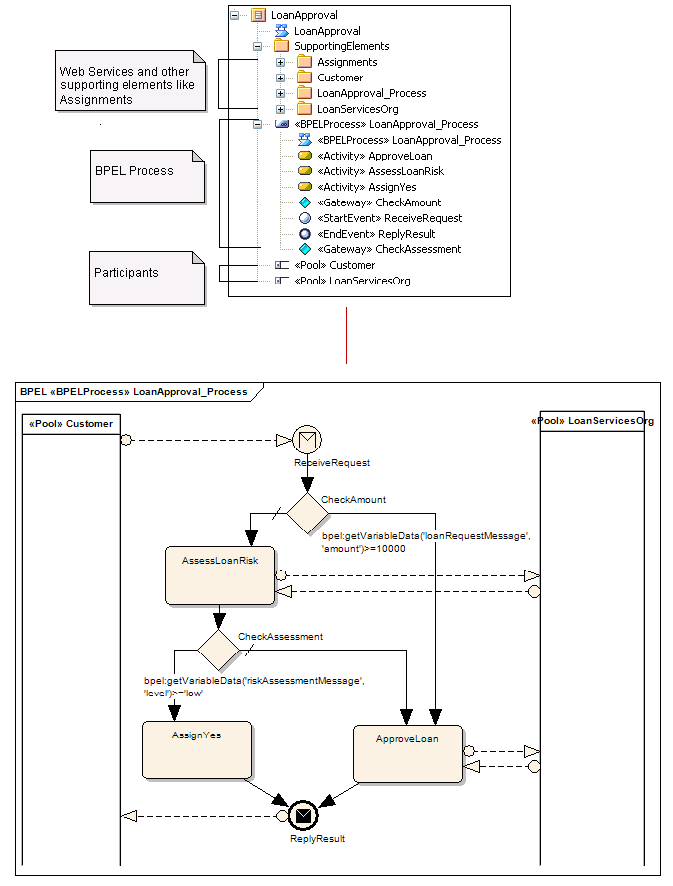

Example BPEL 1.1 Package Structure:
The BPEL Process LoanApproval_Process acts as container for the BPEL diagram and elements. The SupportingElements Package contains supporting components like Assignments and Web Services.
