OpenModelica on Windows

When installing OpenModelica for Enterprise Architect operating on a Windows platform, you firstly install the OpenModelica application, then configure the settings in Enterprise Architect to access OpenModelica.

Install OpenModelica

Step

Action

1

Download the OpenModelica Installer from:

https://openmodelica.org/download/download-windows

2

Double-click on the OpenModelica installer and follow the 'Wizard' instructions.

We recommend that you accept the default path for installation.

3

Check that you can locate the executable omc.exe.

For example:  C:\OpenModelica1.9.2\bin\omc.exe

Access

Use either of these access paths to display the 'Simulation Solver Path' dialog, to configure the Solver.

Method

Select

Ribbon

Simulate > System Behavior > Modelica/Simulink > SysMLSim Configuration Manager > > Configure Simulation Solver

Other

Double-click on an Artifact with the SysMLSimConfiguration stereotype > > Configure Simulation Solver

Configure the Solver

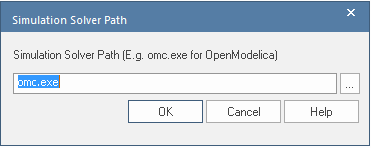

For Windows, the 'Simulation Solver Path' dialog resembles this:

Type in or browse for the path to the OpenModelica Solver to use in Enterprise Architect.
