Manage Baselines in Reusable Asset Service
When you manage Baselines through the Reusable Asset Server (RAS) all of the Baseline features are available but in addition there are a range of other features only available when using RAS baselines. As discussed in a prior topic the baselines are available to a much wider audience, including other teams and departments, customers, standards authorities, partners, consultants, testers and more, all protected by robust industry standard security. Baselines stored in the RAS are more transparent and searchable, making it easier to understand and work with the content they contain.

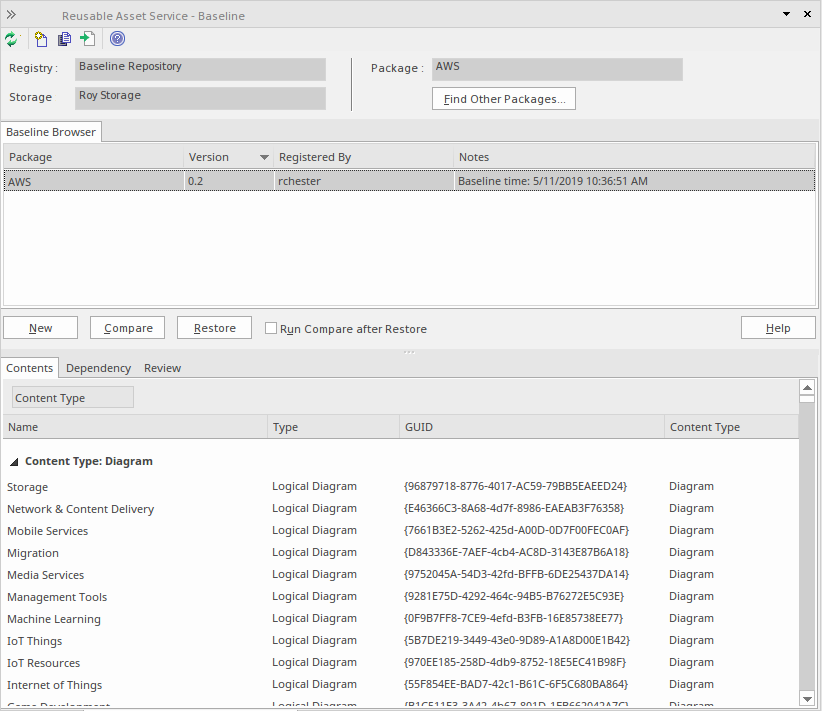

Enterprise Architect provides a range of facilities for working with and managing Baselines stored in a Reusable Asset Service Registry, using the 'Reusable Asset Service - Baseline' view. When you open this view, the 'Baseline Browser' tab immediately displays a list of the Baselines available for the Package that is currently selected in the Browser window. You can review and use these Baselines using the context menu and buttons on the tab.
You can review the contents of the selected Baseline using the tabs in the lower half of the 'Reusable Asset Service - Baseline' view, underneath the 'Baseline Browser' tab.
If you have left the 'Baseline Browser' open for a while, there is a possibility that the contents of the Storage in Registry might have changed. Click on the
icon in the 'Reusable Asset Service - Baseline' toolbar to refresh the Browser with the latest contents of the Storage.
Note: To store Baselines in a Reusable Asset Service Registry, select the 'Baseline' page in the 'Manage Model Options' dialog and configure the Cloud connection to the Registry, then select or create the Storage in which to store all the Baselines for the Packages in the model.
Access
|
Ribbon |
Design > Package > Manage > Manage Baselines |
|
Keyboard Shortcuts |
|
Baseline Management
Create, select and process Baselines using the 'Reusable Asset Service - Baseline' view.
Option |
Action |
See also |
|---|---|---|
|
Registry |
Displays the Registry name, as specified on the 'Baseline' page of the 'Manage Model Options' dialog. |
Baseline Page |
|
Storage |
Displays the Storage name, as defined on the 'Baseline' page of the 'Manage Model Options' dialog. |
Baseline Page |
|
Package |
Displays the name of the Package currently selected in the Browser window. |
The Browser Window |
|
Find Other Packages |
Click on this button to open the 'Reusable Asset Services' view, displaying the Storage and its full contents; that is, all Packages with Baselines, and any other Packages held in the Storage. |
Create Baselines Reuseable Asset Service (RAS) |
|
Baseline Browser |
Lists the Baselines, if any, for the current Package. The Baselines are listed by version - with the highest alphabetical or numerical value at the top. When you select a Baseline in the Browser, details of the Baseline are displayed in the tabs beneath the 'Baseline Browser' tab. Note: You can right-click on the column headings and select the 'Toggle Bar' option to show or hide the Filter Bar on the display. If you show the Filter Bar, type in the appropriate characters to list only those Baselines that have that string of characters in the value in the corresponding column. |
Baseline Contents Baseline Dependencies Add Review Comments |
|
New |
Click on this button to create a new Baseline. Note: You can also click on the |
Create Baselines |
|
Compare |
Click on this button to run the Compare utility on the selected Baseline and the current Package, to display any differences between the two. The results of the comparison are displayed on the 'Comparison Utility' view. Note: You can also run the Compare utility by:
|
The Compare Utility (Diff) Example Comparison |
|
Restore |
Click on this button to completely restore the Package in the model from the selected Baseline. Note: You can also restore the Package from the selected Baseline by:
|
|
|
Run Compare after Restore |
Check this option to automatically run the Compare utility once the Package is completely restored from the selected Baseline. |
The Compare Utility (Diff) |
icon in the 'Reusable Asset Service - Baseline' toolbar to create a new Baseline.
icon in the 'Reusable Asset Service - Baseline' toolbar or
icon in the 'Reusable Asset Service - Baseline' toolbarNotes
- The Package Baseline facilities are available in the Corporate, Unified and Ultimate Editions of Enterprise Architect
- Reusable Asset Service Registry details must be configured in the 'Baseline' page of the 'Manage Model Options' dialog
- If a 'Read-Only Access' password is entered for the Storage in the 'Baseline' page of the 'Manage Model Options' dialog, you will not be able to create new Baselines in the 'Reusable Asset Service - Baseline' view as the 'New' button will be disabled
- If security is enabled, you must have 'Baselines - Restore model' permission to restore a Package from the selected Baseline
