Extended Server Properties

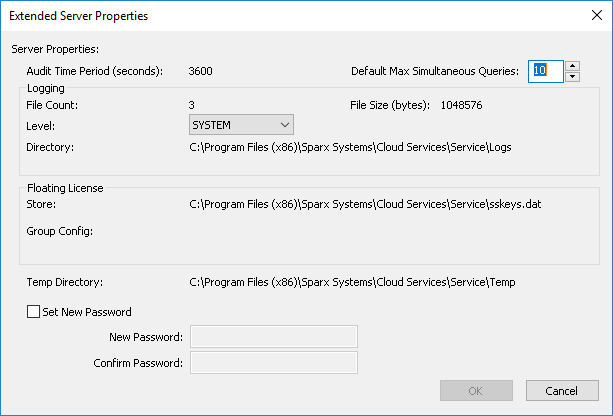

The Extended Server Properties screen displays when you click on the 'Extended Properties' button on the Main screen. It helps you to configure the global options applied to the Pro Cloud Server. Each of these options can also be set in the configuration file; however, the service does not require a restart if the options are changed using this screen.




Audit Time Period

Read-only value showing the number of seconds between audit reports.

Default Max Simultaneous Queries

Provides a default value for the setting of 'Max Simultaneous Queries' when defining new database managers.

Logging File Count

Read-only value showing the number of log files that should be retained. All logging is written to files named 'SparxCloudServicesLog-X.log' where X represents the file number.

File 'SparxCloudServicesLog-1.log' is always the current file. When the maximum file size is reached, all existing files are renamed by incrementing the file number and a new 'SparxCloudServicesLog-1.log' created.

Logging File Size

Read-only value showing the maximum file size of each log file. When the file reaches this maximum, a new file is created.

Log Level

Click on the drop-down arrow and select the level of information to be written to the log file. The valid options are:

  OFF - No logging is performed

  FATAL - Only fatal errors are logged

  WARNING - Warning are logged

  INFO - Information messages that provide general message advising what actions are occurring

  SYSTEM  - More detailed messages

Log Levels are cumulative, for example the INFO level includes all messages of type FATAL, WARNING and INFO

Logging Directory

Read-only value showing the physical directory into which the log files are saved.

License Store

Displayed when using the Pro Cloud Server. Displays the path of the license store file, by default this is C:\Program Files (x86)\Sparx Systems\Pro Cloud Server\Service\sskeys.dat

Temp Directory

Read-only value showing the physical path of the temp directory, by default this is C:\Program Files (x86)\Sparx Systems\Pro Cloud Server\Service\Temp.

Set New Password

Select this checkbox to set/change the administrator password for the currently connected Pro Cloud Server.  If a Password is set then all users attempting to use the Pro Cloud Server Configuration Client will be required to provide the specified password.
