Pro Cloud Server using IIS (Optional)
For most users, the built-in web server provided with the Pro Cloud Server provides all the functionality they require. It is also the easiest method to set up and use.
However, the Pro Cloud Server also provides the option of integrating with Internet Information Services (IIS). This is recommended only for users for whom the built-in authentication methods are insufficient, and who want to use Windows Active Directory or certificate-based authentication (see the Import User IDs from Active Directory Help topic). Note that the use of IIS does not eliminate the login process, and users must still enter their user IDs and passwords.
To configure IIS to host the Pro Cloud Server, you must first set the SparxCloudLink.sseap file to refer to the Pro Cloud Server, and then in Windows open the Internet Information Services (IIS) Manager and configure it to send requests to the appropriate module. Depending on your preferences you can choose either an HTTP Module or an ISAPI module.
Prior to setting up HTTP or ISAPI, these settings must be made in IIS:
- Application Pool settings
- Feature Settings
For a secure HTTPS setup (optional):
- Set up a Certificate
- Set up HTTPS
Before setting up your HTTP module or ISAPI module, you must first check that the SSProCloud.config file for the service is configured as required, and note the port used so that you can specify it when you go on to set the SparxCloudLink.sseap file to refer to the Pro Cloud Server.
The directory path containing the ISAPI dll also contains the SparxCloudLink.sseap configuration file.
The path should resemble this example:
“C:\Program Files (x86)\Sparx Systems\Pro Cloud Server\ISAPI”
Edit this file in a text editor, running as an Administrator.
The default contents are:
The address to look up the machine running the Pro Cloud Server. In most circumstances it is best to run the HTTP module and the Pro Cloud Server on the same machine. In this case, the default value of localhost can be used. If the Pro Cloud Server is running on a different machine, use the IP address or server name where the service is running.
The port the Pro Cloud Server is listening on for admin requests. By default this takes the value of 803, but this should be cross-referenced against your service configuration in the SSProCloud.config file.
These points are optional. For testing purposes you might prefer to leave these changes until any issues with IIS are resolved.
- In the SSProCloud.config file, remove all the references to ports other than the administration port (default 803). In other words, remove the bracketed entries (…) from the config file.
- Save the SSProCloud.config file.
- Restart the Service.
Application Pool Settings

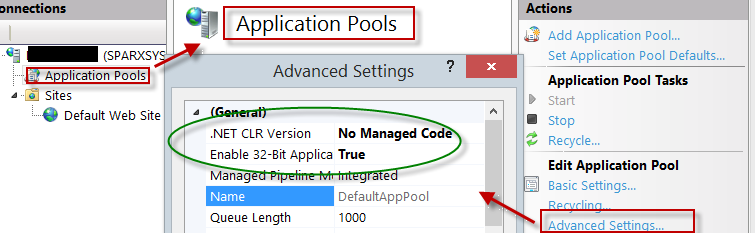

HTTP or ISAPI will require an Application pool that is 32-bit and not managed code. This illustration shows the settings for 32-bit applications in the IIS Application Pools Advanced Settings view.

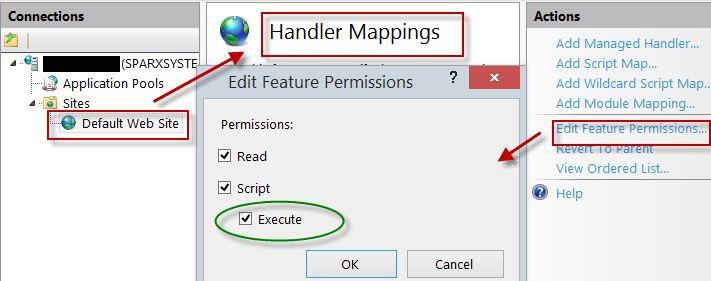

This illustration shows the access path and the 'Default Web Site | Handler' mappings to permit Script Execution.
Setting up a Certificate
In order to run the HTTPS service you must set up a security certificate in IIS.
In the IIS Manager:
- Under 'Connections', select the root connection (machine name).
- Double-click on the 'Server Certificates' icon.
- Click on 'Create Self Signed Certificate'.
- Specify a simple, user-friendly name for the certificate.
Setting up HTTPS
To set the bindings through which HTTPS will operate, you must include a port and a certificate in the site bindings.
In the IIS Manager:
- Under 'Connections', select the 'Default Web Site' option
- Under 'Actions' click on the 'Bindings' option
- In the Site Bindings window click on 'Add'
This will open the Add Site Binding window.
Set these parameters:
- Type: HTTPS
- Port: 443
- SSL Certificate: select the certificate created in Setting up a Certificate
To set up the HTTP module in the Internet Information Services (IIS) Manager:
- In the 'Connections' panel, select the machine properties (top of the tree).
- Double-click on the 'Modules' icon in the middle panel.
This returns the 'Modules' list and the 'Actions' view.
- In the 'Actions' list, click on the 'Configure Native Modules…' option.
This opens the 'Configure Native Modules' view.
- Click on the
Type in the name and the path of the SSCSIISHttpLink.dll file.
to open the 'Register Native Module' dialog.
- Click on the
. The 'SSCloudServices' checkbox will now be selected.
- Click on the OK button to close the 'Configure Native Modules' dialog.
- In the 'Connections' panel (see Step 1), click on your web site.
- Double-click on the 'Handler Mappings' in the middle pane.
This opens the Handler Mappings view:
- In the 'Actions' list, click on the 'Add Module Mapping' option to open the 'Add Module Mapping' dialog.
- As illustrated, set the 'Request path' and 'Name'.
- In the 'Module' field, click on the drop-down arrow and select the module added in step 4.
- Click on the
. On the 'Request Restrictions' dialog, select the 'Access' tab. Select the 'Execute' radio button to enable Execute permission.
- Select the 'Mappings' tab and deselect the 'Invoke Handler only if request is mapped to' checkbox.
- Click on the OK button.
- Close the 'Add Module Mapping' dialog by clicking on the OK button again.
To complete this HTTP module set up, see the Configuration Settings section at the start of this topic. You should then be able to connect to a model using Enterprise Architect via your IIS server using the HTTP module.
To configure an ISAPI module instead of the HTTP module:
- In the 'Connections' panel, select the machine properties:
- Double-click on the 'Handler Mappings' icon:
- In the 'Actions' list, click on the 'Add Module Mapping' option.
- In the 'Add Module Mapping' dialog, set 'Request path' to 'sparxCloudLink.sseap', 'Module' to 'IsapiModule', and 'Executable' to 'SSCSIISIsapiLink.dll', as shown.
- Click on the to close the dialog. You should now be able to connect to a model using Enterprise Architect via your IIS server using ISAPI.
