Access Control

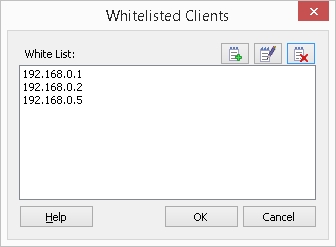

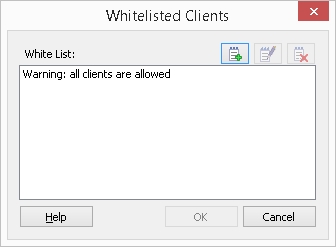

The Whitelisted Clients screen displays when you click on the 'Access Control' button on the Main screen. It allows you to configure the what Enterprise Architect clients are authorized to communicate with the Pro Cloud Server. By default all clients are authorized, however if your environment requires a higher level of security then it is possible to limit exactly what clients can access the Pro Cloud Server.
Note, when using WebEA the IP of the web server (hosting WebEA) will need to be included in the whitelist, which unfortunately means there is no way to restrict individual WebEA users, as all users request will arrive at the PCS with the IP of the web server.
Details
Option |
Description |
|---|---|
|
List |
Displays a list of whitelisted client addresses. The client address can be either an IPv4 or an IPv6 address; that is, 255.255.255.255 or ABCD:EF01:2345:6789:ABCD:EF01:2345:6789. |
|
Add |
Provides the ability to add a single client (either an IPv4 or an IPv6) address to the whitelist. |
|
Edit |
Provides the ability to edit an existing client address. |
|
Delete |
Provides the ability to remove an existing client address from the white list. |
